GEEKOM A9 Max

AI Mini PC — AMD Ryzen™ AI 9 HX 370 (Strix Point)

The GEEKOM A9 Max is a compact, all-metal mini PC that combines desktop-level productivity with genuine AI acceleration in a chassis smaller than 0.84 liters. Built around AMD’s flagship Strix Point APU — the Ryzen AI 9 HX 370 — it delivers 80 TOPS of combined AI performance through a trio of compute engines: a 12-core Zen 5 / Zen 5c CPU, an AMD Radeon 890M integrated GPU with 16 RDNA 3.5 compute units, and a dedicated XDNA 2 NPU rated at 50 peak TOPS. Add dual 2.5 GbE ports, Wi-Fi 7, eight USB ports, and fully user-upgradeable DDR5 RAM and NVMe storage, and you have a machine that punches well above its physical dimensions.

AMD Ryzen™ AI 9 HX 370 — Strix Point, the Pinnacle of Mobile Zen 5

At the centre of the A9 Max sits AMD’s most capable Strix Point processor, the Ryzen AI 9 HX 370, manufactured on a 4 nm process node. The chip combines four full Zen 5 performance cores with eight efficiency-optimised Zen 5c cores, totalling 12 cores and 24 threads with simultaneous multi-threading. The base clock begins at 2.0 GHz and boosts up to 5.1 GHz under demand, supported by 24 MB of L2 cache and 24 MB of L3 cache. The configurable TDP window spans 28W to 54W, making the A9 Max equally suited to near-silent operation at low power and sustained peak workloads at full throttle. In real-world benchmarks across multiple reviews, the Ryzen AI 9 HX 370 outpaces the previous-generation Ryzen 7 7840HS by a significant margin and competes directly with much larger desktop platforms in multi-threaded rendering and simulation tasks.

• 12 cores / 24 threads (4× Zen 5 + 8× Zen 5c)
• Base 2.0 GHz — Boost up to 5.1 GHz
• L2 Cache: 24 MB | L3 Cache: 24 MB
• 4 nm TSMC process node
• TDP: 28W base / up to 54W configurable
• Released: Q3 2024 (Strix Point platform)

AMD Radeon™ 890M — Integrated Graphics Approaching Entry-Level Discrete Performance

The integrated Radeon 890M GPU incorporates 16 RDNA 3.5 compute units running at up to 2.9 GHz, making it the most capable integrated GPU available in a standard laptop or mini PC APU at the time of the A9 Max’s release. In gaming benchmarks at 1080p with medium-to-high settings, the 890M consistently competes with entry-level discrete cards, delivering playable frame rates in AAA titles without any external GPU. For creative workloads, the 890M accelerates hardware video encoding through AMD’s media engine, and its DisplayPort 1.4 output capability feeds up to four simultaneous 8K displays. Through the BIOS, users can allocate up to 24 GB of system RAM as dedicated VRAM, substantially improving GPU-intensive tasks such as local AI image generation with Stable Diffusion.

XDNA 2 NPU — 50 TOPS of Dedicated AI Acceleration

The Ryzen AI 9 HX 370 includes AMD’s second-generation XDNA 2 neural processing unit, delivering 50 peak TOPS of hardware-accelerated AI inference independently of the CPU and GPU. This makes the A9 Max a certified Microsoft Copilot+ PC, qualifying it for all Copilot+ AI features in Windows 11 including Recall, live caption translation, AI image generation, and real-time studio effects. Combined with the CPU’s 20 TOPS and the GPU’s 12 TOPS, the system delivers a total of 80 TOPS — meeting and exceeding the 40 TOPS Copilot+ requirement by a factor of two. Beyond Windows AI features, the NPU accelerates tasks in applications such as DaVinci Resolve, Topaz AI, and local language model inference through tools like LM Studio and Ollama.

Up to 128 GB DDR5 — Fully User-Upgradeable SO-DIMM Slots

Unlike many competing AI mini PCs that solder memory directly to the motherboard, the GEEKOM A9 Max uses two standard DDR5 SO-DIMM slots, each supporting modules up to 64 GB for a maximum of 128 GB total. The base configuration ships with 32 GB of DDR5-5600 in a dual-channel 2×16 GB configuration. Users who want to upgrade to 64 GB or 128 GB only need to purchase compatible DDR5 SO-DIMM modules — no soldering, no board swaps, and no special tools beyond a small Phillips screwdriver. This upgrade path is a significant advantage over the GMKtec EVO-X2 and similar Strix Halo-based systems where memory is permanently fixed. The dual-channel architecture ensures the Radeon 890M GPU has full bandwidth access to system memory, maximising iGPU performance.

• 2× DDR5 SO-DIMM slots — fully user-accessible
• Standard config: 32 GB DDR5-5600 (2×16 GB dual-channel)
• Maximum supported: 128 GB (2×64 GB)
• Compatible with standard DDR5 SO-DIMM modules
• Up to 24 GB allocatable as dedicated GPU VRAM via BIOS

Dual M.2 PCIe 4.0 Storage — Fast and Expandable

Storage is handled through two M.2 slots running PCIe 4.0 x4: a primary M.2 2280 slot pre-populated with a 2 TB Lexar NVMe SSD offering sequential reads around 6,200 MB/s and writes exceeding 5,400 MB/s, and a secondary M.2 2230 slot that ships empty and ready for expansion. Both slots are accessible from the bottom of the chassis after removing four corner screws, making upgrades genuinely practical without specialist equipment. The total addressable storage across both slots reaches up to 8 TB when using the highest-capacity available modules, and both operate at full PCIe 4.0 bandwidth with no sharing or downgrading.

Quad 8K Display Output — Four Simultaneous Screens

The A9 Max supports up to four independent displays simultaneously through its combination of two HDMI 2.1 FRL ports and two USB4 ports with DisplayPort 1.4 Alt Mode, all capable of 8K at 60 Hz or 4K at 144 Hz. This makes the A9 Max a genuinely viable multi-monitor workstation for professional applications — from video editing suites with reference and timeline screens to trading desks and software development environments. All four output ports are located on the rear panel for a clean, cable-managed desk setup.

Dual 2.5 GbE Ethernet — A Standout Networking Feature

One of the A9 Max’s most distinctive connectivity features is its dual 2.5 Gigabit Ethernet setup. Having two independent 2.5 GbE ports allows users to connect simultaneously to two separate wired networks — for example, a main router and a NAS device — without requiring a switch or USB adapter. This is particularly valuable for home server setups, content creators transferring large files over a local network, or professionals who need network isolation between environments. Both ports operate at full 2.5 Gbps independently, and the system also supports link aggregation on supported switches.

Wi-Fi 7 + Bluetooth 5.4 — Latest-Generation Wireless

Wireless connectivity is handled by a Wi-Fi 7 (802.11be) module with Bluetooth 5.4 support. Wi-Fi 7 delivers multi-link operation, higher theoretical throughput, and lower latency compared to Wi-Fi 6E, making it future-proof for the next generation of routers and access points. Bluetooth 5.4 ensures stable connections with modern peripherals including wireless headsets, controllers, and keyboards.

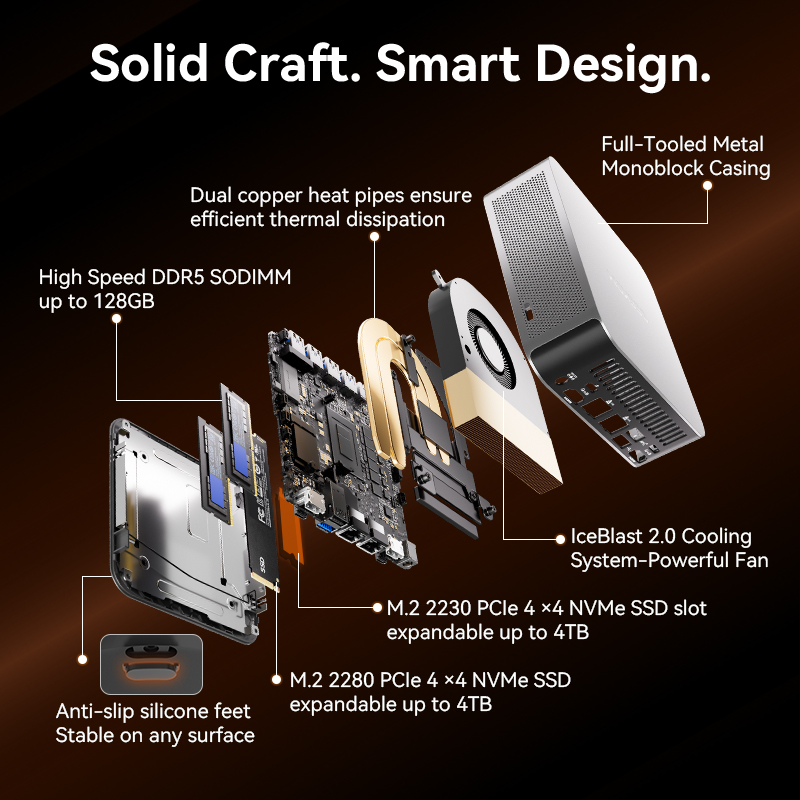

IceBlast 2.0 Cooling — 52% More Efficient in Under 0.84 Litres

Keeping a 54W APU stable in a chassis under one litre requires a purpose-engineered thermal solution. GEEKOM’s IceBlast 2.0 system uses a full copper base plate, dual copper heat pipes, a copper fin stack, and a high-speed blower fan — all in a stacked configuration that maximises airflow through the exhaust vents on the sides of the chassis. GEEKOM rates IceBlast 2.0 as 52% more thermally efficient than conventional mini PC coolers of equivalent volume. In independent testing, the A9 Max maintains stable CPU and GPU clock speeds under sustained loads with no thermal throttling in normal or performance mode, and operates at a quiet hum in everyday use — only becoming audible under maximum sustained load.

Build Quality — Military-Grade Chassis in 0.84 Litres

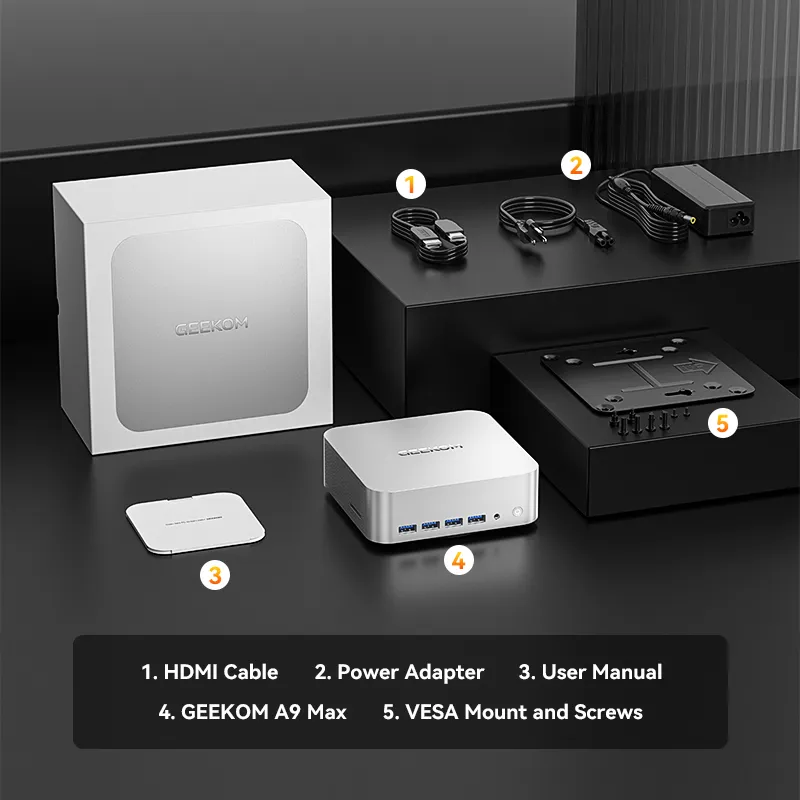

The A9 Max chassis is machined from aerospace-grade aluminium with a silver-and-black finish, featuring the iconic GEEKOM logo etched into the top surface. At 135 × 132 × 46.9 mm and approximately 670 g, it is one of the most compact full-featured AI mini PCs available. The chassis is rated to withstand up to 200 kg of vertical pressure without deformation — a standard more commonly associated with industrial equipment than consumer computing. Injection-moulded rubber feet with anti-slip coating keep the unit firmly positioned on any surface. A Kensington lock slot on the side panel provides physical security in shared or public environments. A VESA 75×75 mount adapter is included in the box, enabling rear-of-monitor or under-desk installation.

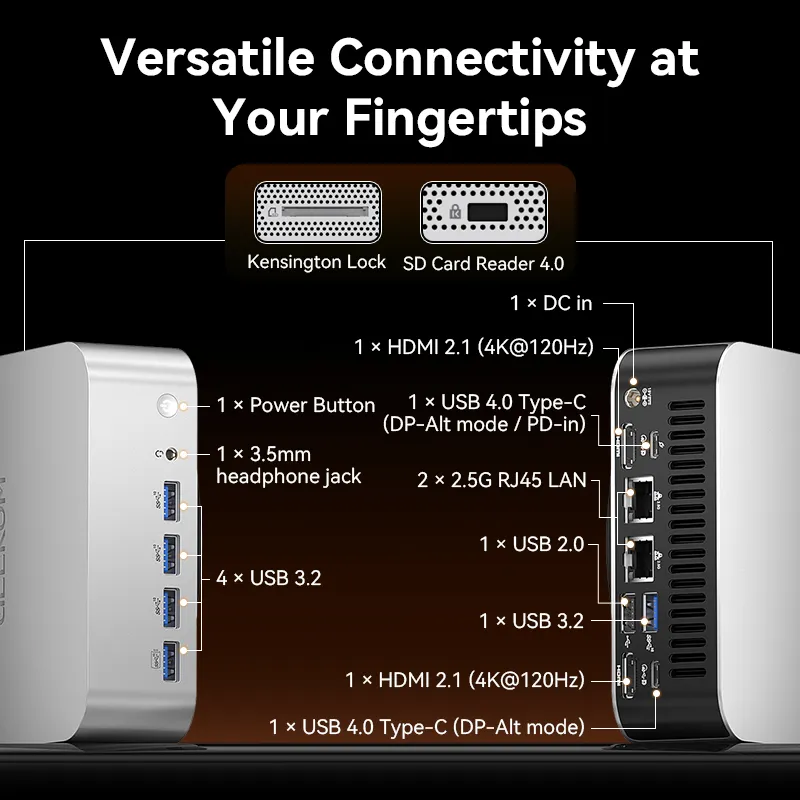

Comprehensive Port Layout

Front: 2× USB-A 3.2 Gen2 (10 Gbps) · 1× USB4 (40 Gbps, PD-in / DP1.4 / Data) · 1× SD UHS-II card reader · 1× 3.5mm combo audio jack · Power button

Rear: 2× HDMI 2.1 FRL (8K@60Hz) · 1× USB4 (40 Gbps, DP1.4 / Data) · 1× USB-A 3.2 Gen2 (10 Gbps) · 1× USB-A 2.0 · 2× RJ45 2.5 Gigabit Ethernet · 1× DC power input (19V/6.32A)

Side: 1× Kensington lock slot · 1× SD UHS-II card reader (integrated into the side panel)

Windows 11 Pro + 3-Year Warranty

The A9 Max ships with Windows 11 Pro pre-installed and activated, including all Copilot+ AI features enabled from first boot. Linux and Ubuntu are also officially supported. GEEKOM backs the A9 Max with a three-year warranty covering hardware defects and manufacturing faults, supported by a 24/7 customer service team — an unusually generous coverage period for the mini PC category.
