CHUWI CoreBox 4th Intel® Core™ i3-1215U

Add to wishlistAdded to wishlistRemoved from wishlist 0

Add to compare

Add your review

Product is rated as #7 in category Intel

7.3

Processor	7.2
RAM	7
Hard Disk	7.5
Connectivity	7.5

12th Gen Intel® Core™ i3-1215U Mini PC. Triple 4K@60Hz display support via HDMI 2.0 + DisplayPort 1.4 + USB4. Wi-Fi 6 (Intel AX201). 16GB LPDDR5 (soldered). 512GB PCIe SSD. Hybrid Cooling System.

CHUWI

Brand: Chuwi

CHUWI CoreBox 4th Intel® Core™ i3-1215U

Description
Additional information

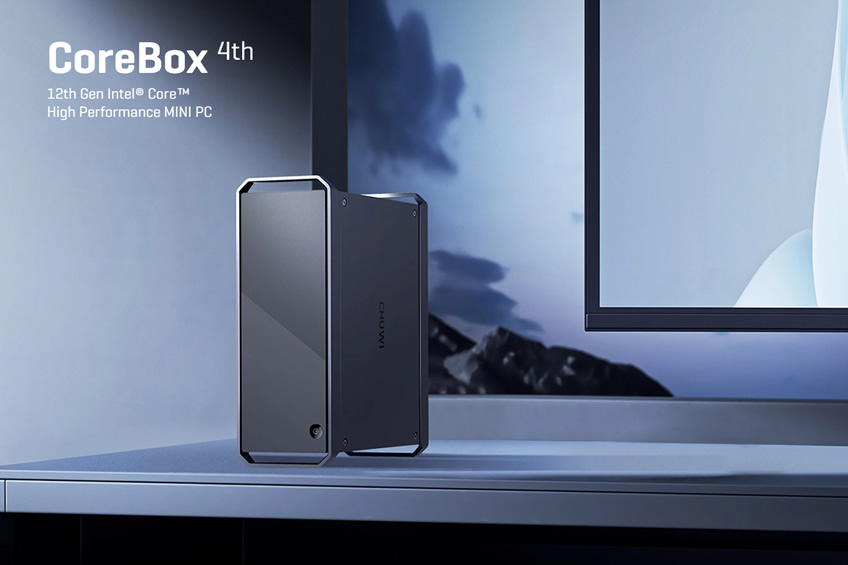

CHUWI CoreBox 4th

12th Gen Intel® Core™ High Performance MINI PC

CHUWI CoreBox 4th intel core i3 1215u mini pc

Intel® Core™ i3-1215U Processor

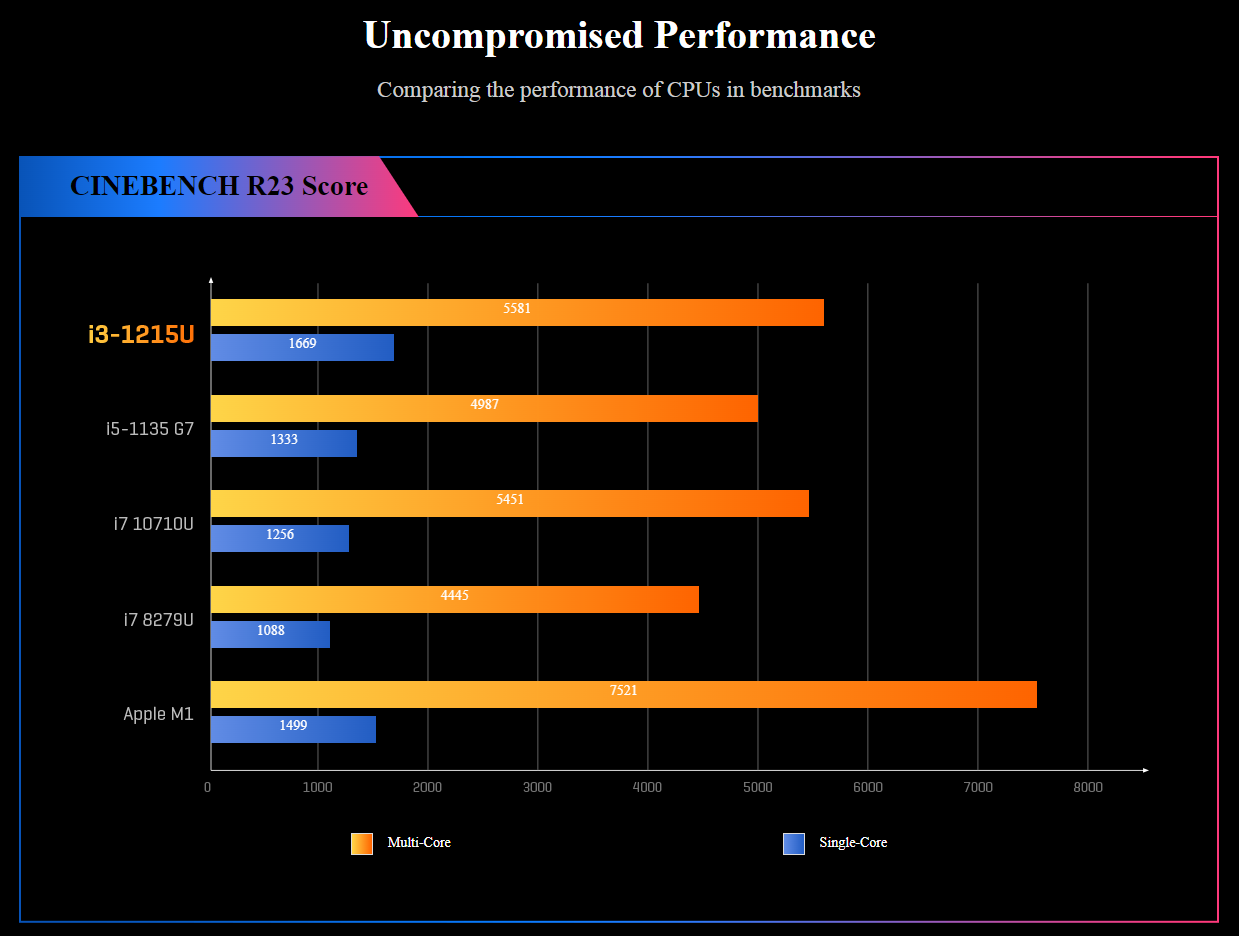

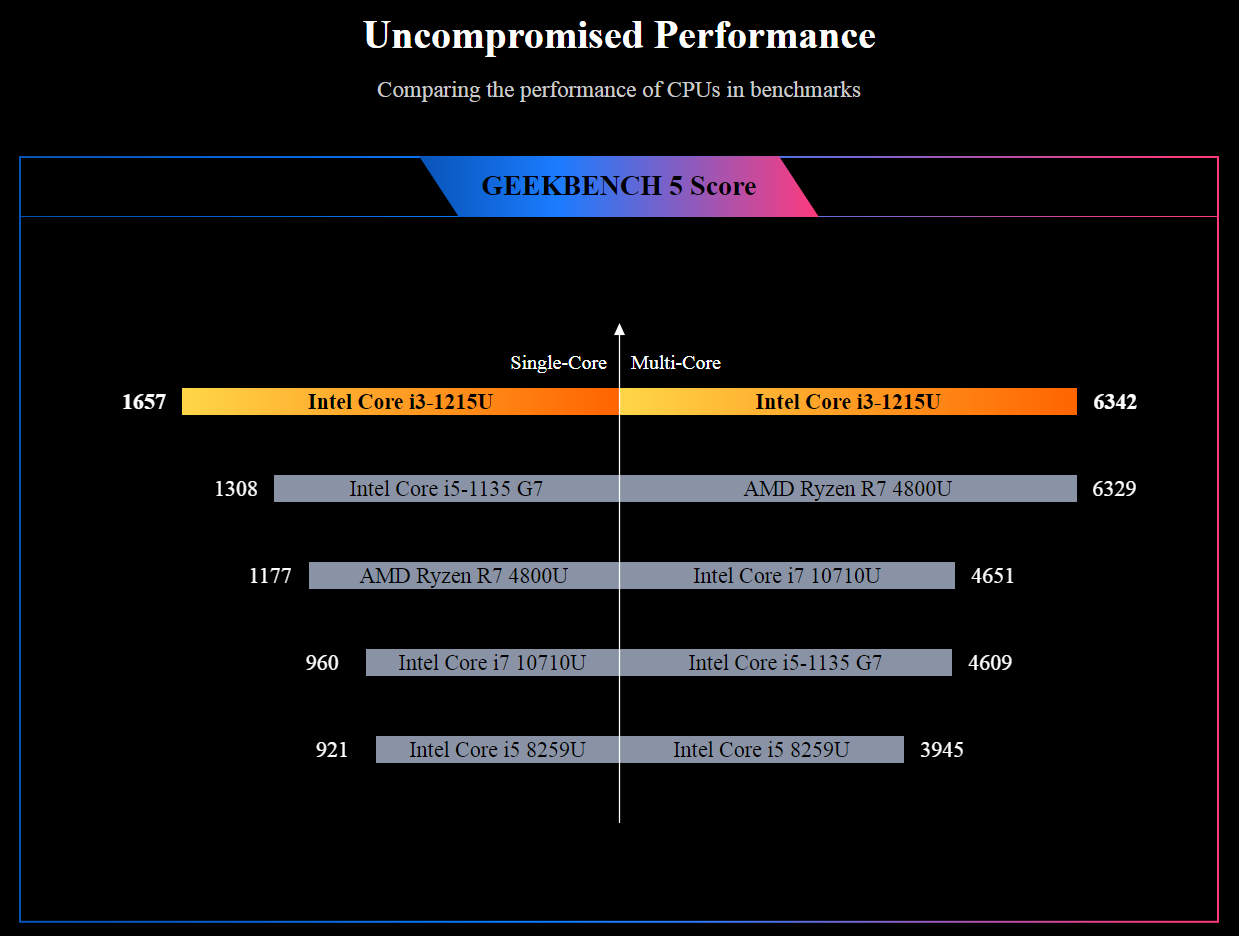

The best ever Intel Core i3-processor equipped on the CoreBox 4th outperforms its predecessors on both single-threaded and multi-threaded tasks by more than 30%. Optimized for multi-tasking, delivering superior performance where you need it the most.

6 Cores / 8 Threads (2 P-cores + 4 E-cores)
1.2 GHz – 4.4 GHz Frequency
10 nm Lithography
TDP up to 35W

CHUWI CoreBox 4th intel core i3 1215u mini pc

Intel UHD Graphics 64EUs

Powerful integrated graphics for 1080P gaming, Play the latest DirectX12 Ultimate games, and full 8K media support. Max frequency 1.10 GHz.

CHUWI CoreBox 4th intel core i3 1215u mini pc

Triple 4K@60Hz Display Support

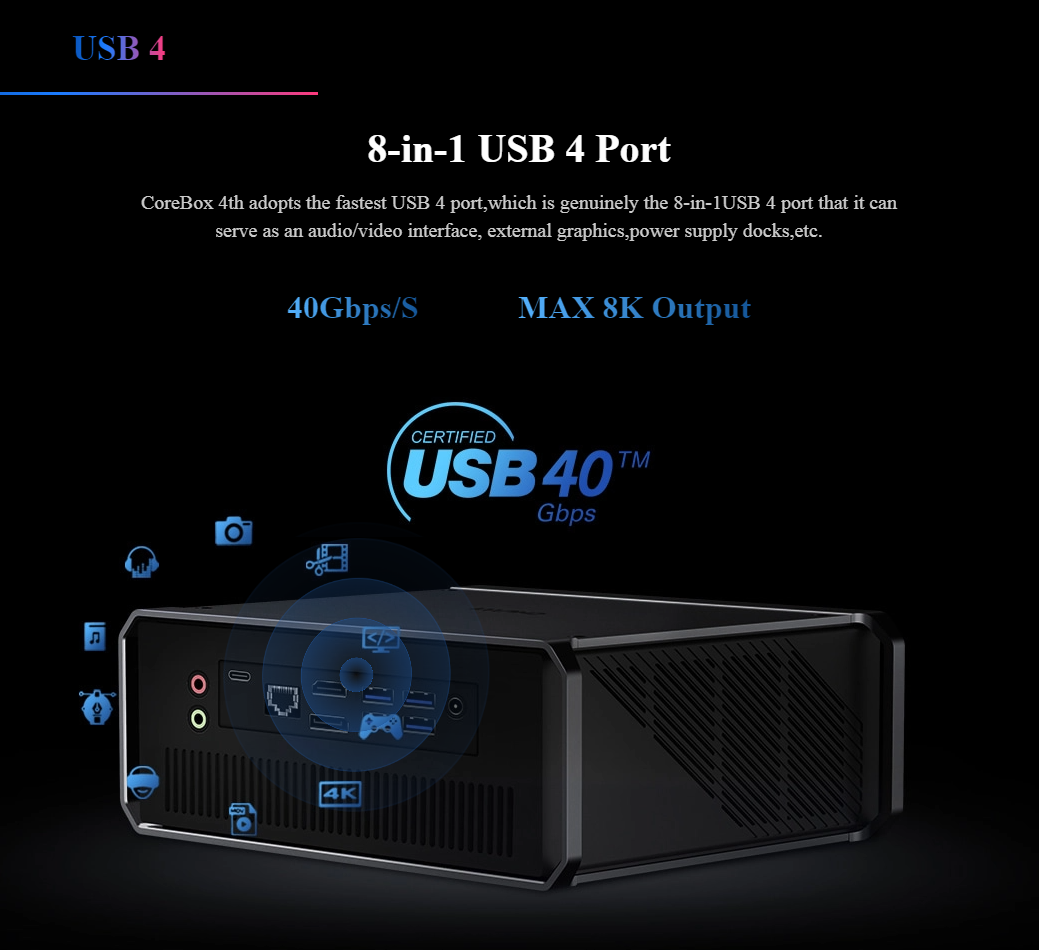

Support up to 3 independent displays via HDMI 2.0, DisplayPort 1.4, and USB4 — all at 4K@60Hz resolution.

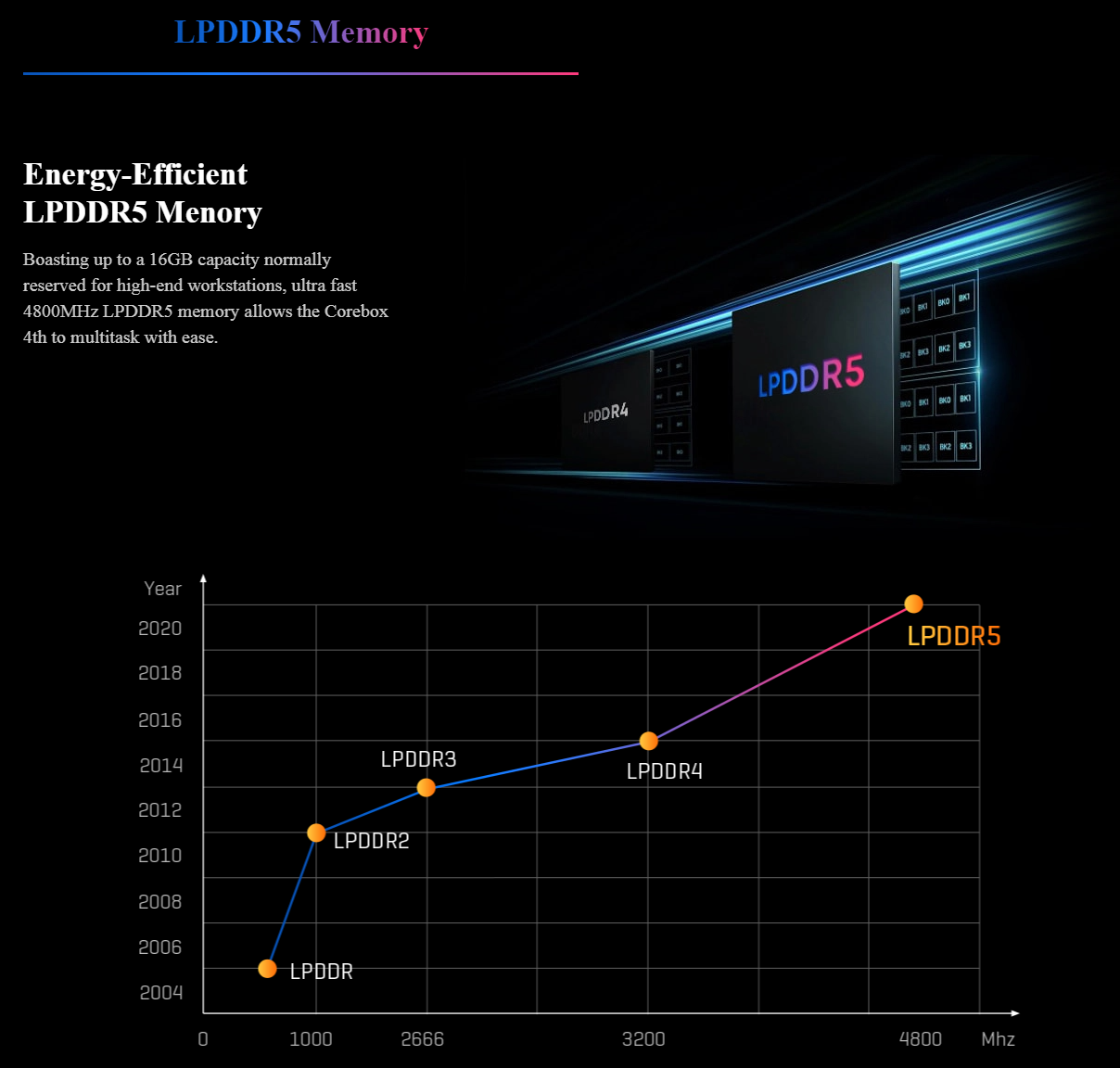

16GB LPDDR5 Memory

Ultra fast 4800MHz LPDDR5 dual-channel memory (soldered) allows the CoreBox 4th to multitask with ease.

CHUWI CoreBox 4th intel core i3 1215u mini pc

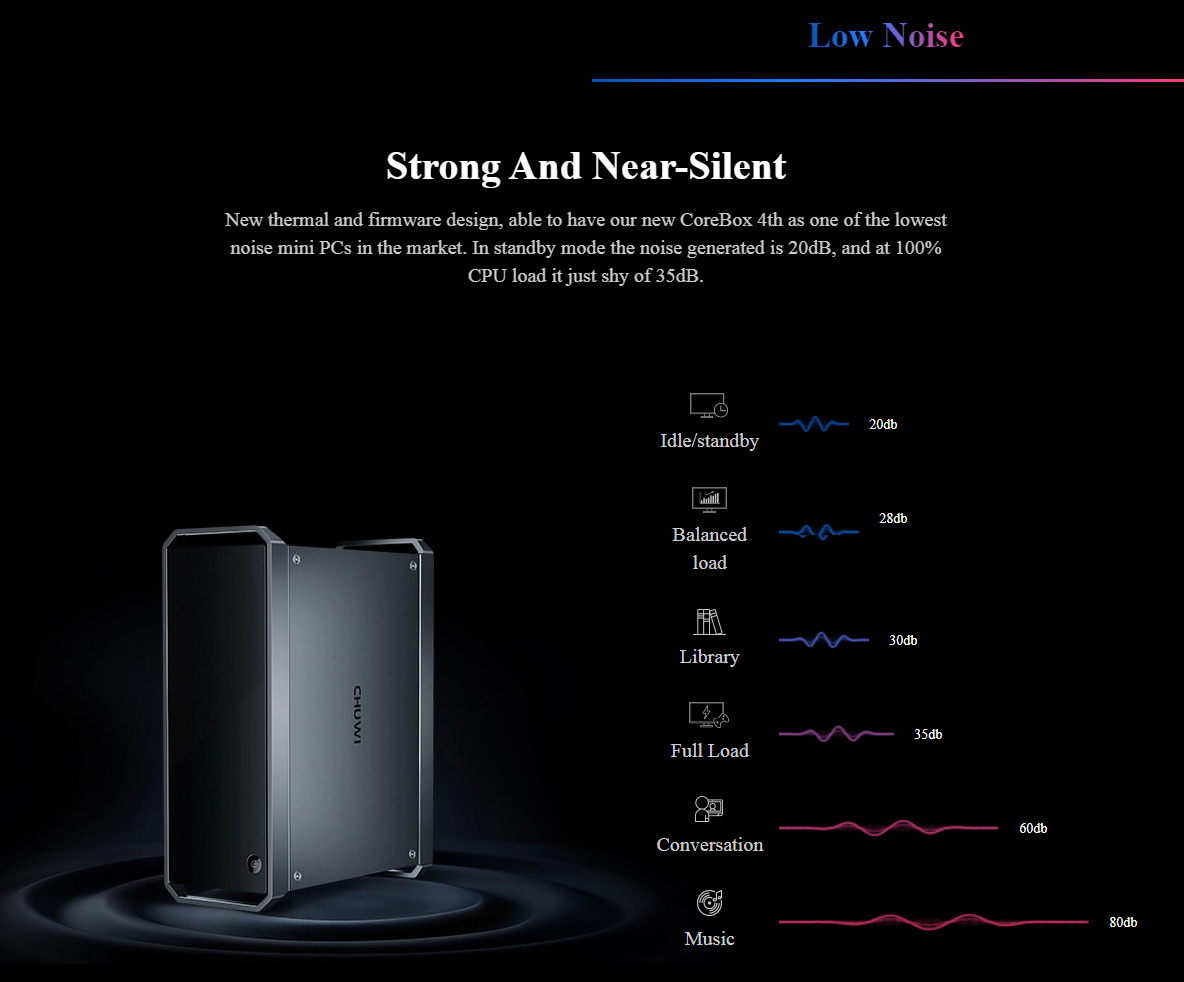

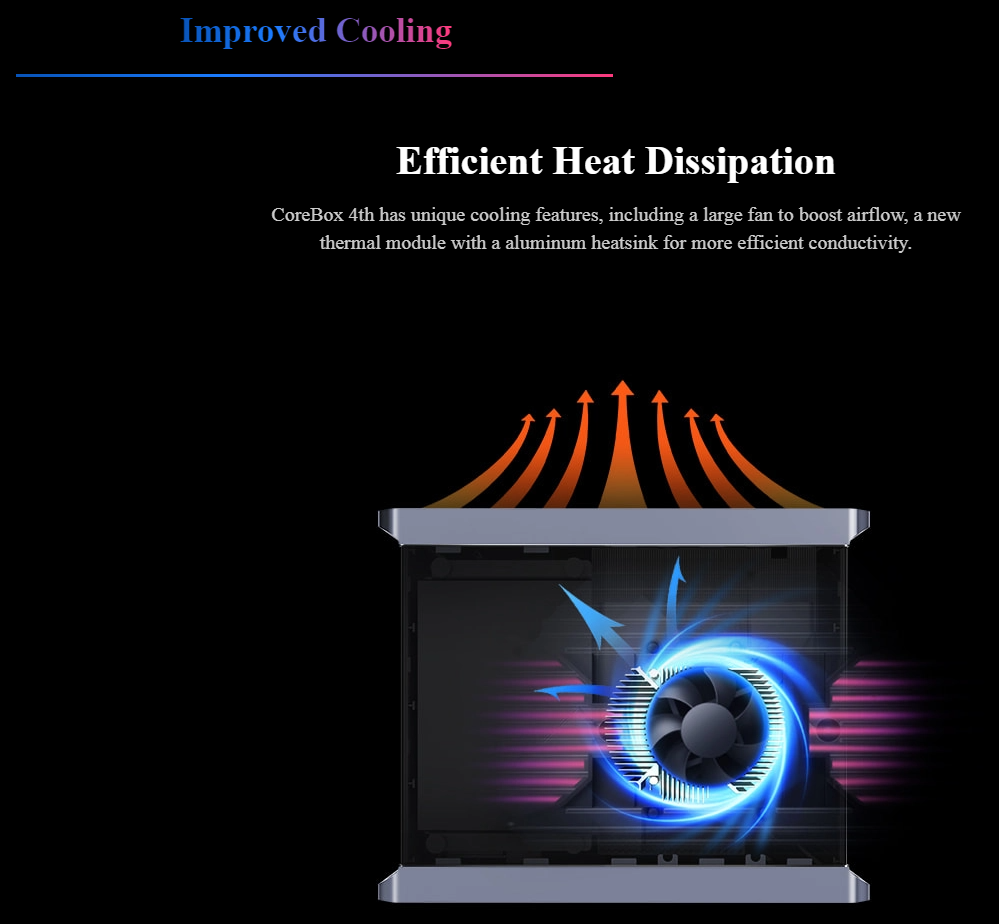

Efficient Heat Dissipation

Hybrid Cooling System with a large fan and aluminum heatsink. Near-silent operation: ~20dB idle, ~35dB at full load.

CHUWI CoreBox 4th intel core i3 1215u mini pc

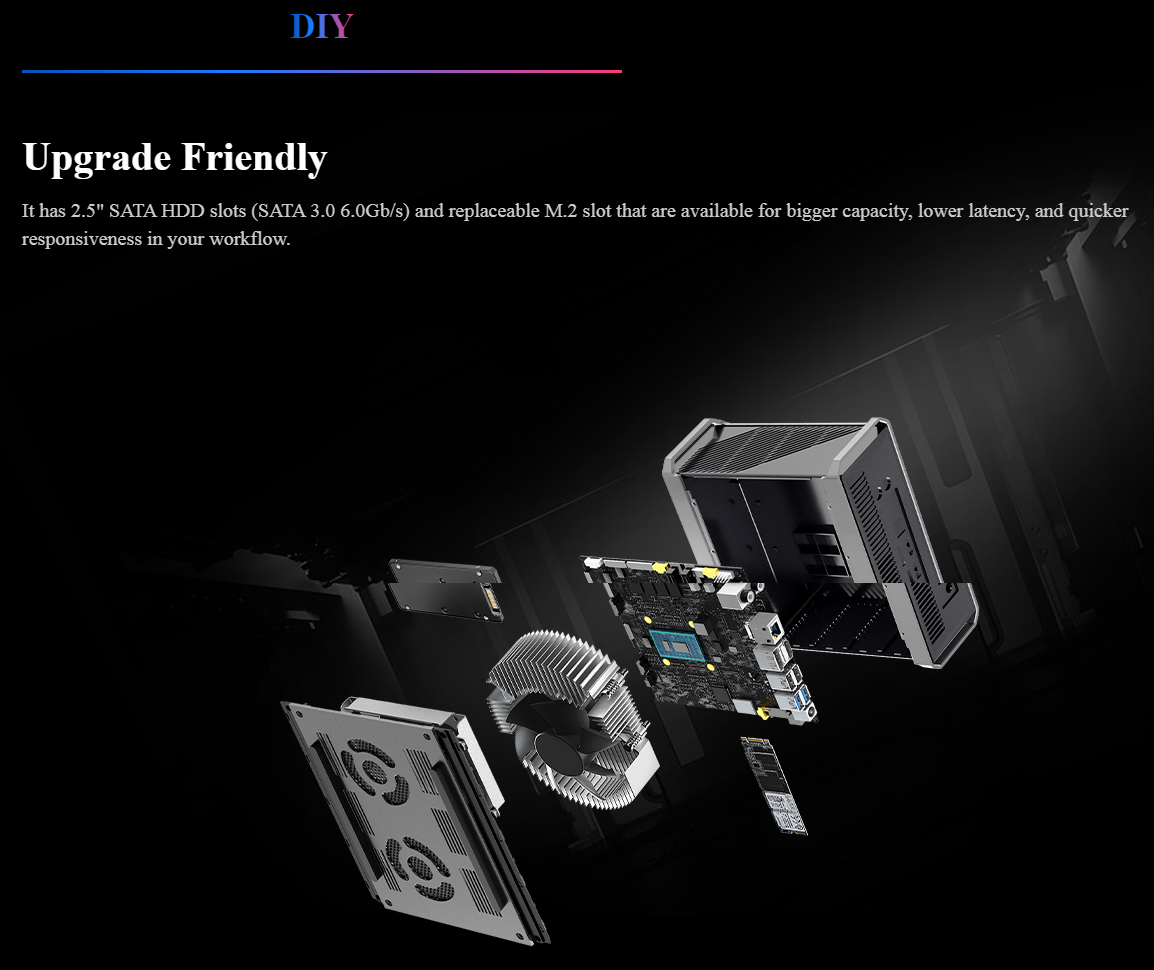

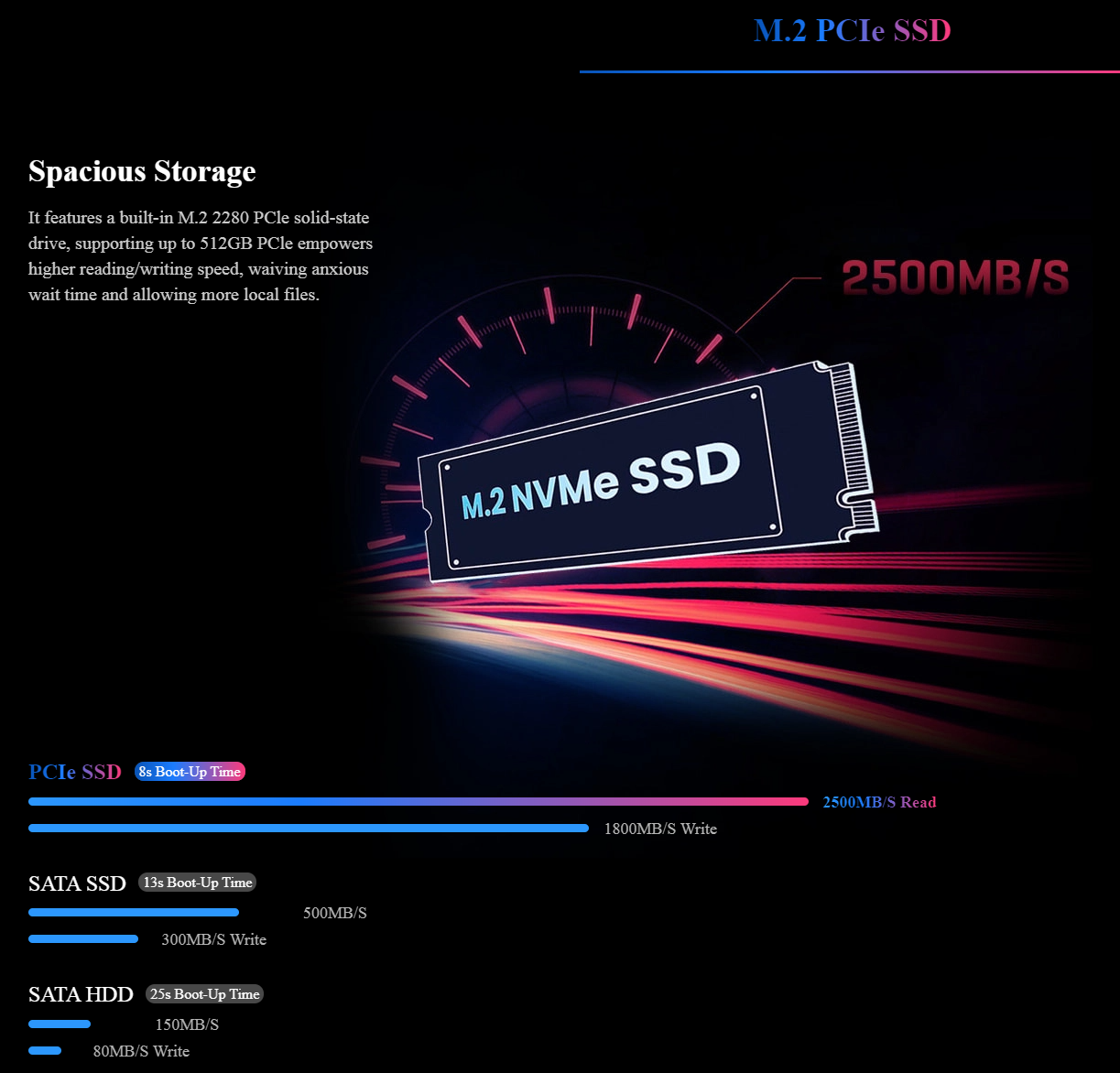

Upgrade Friendly Storage

Features a replaceable M.2 PCIe SSD slot and a 2.5″ SATA HDD/SSD slot (SATA 3.0, 6 Gb/s) for easy storage expansion.

CHUWI CoreBox 4th intel core i3 1215u mini pc

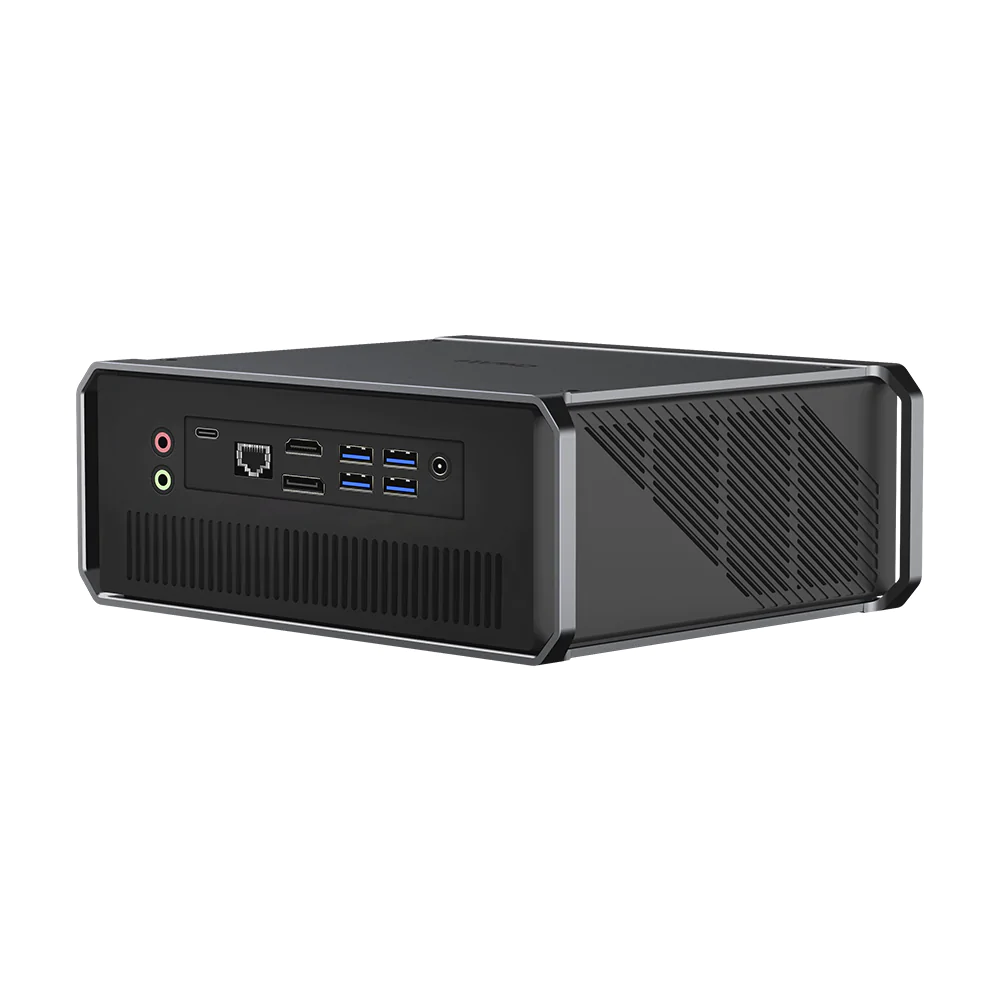

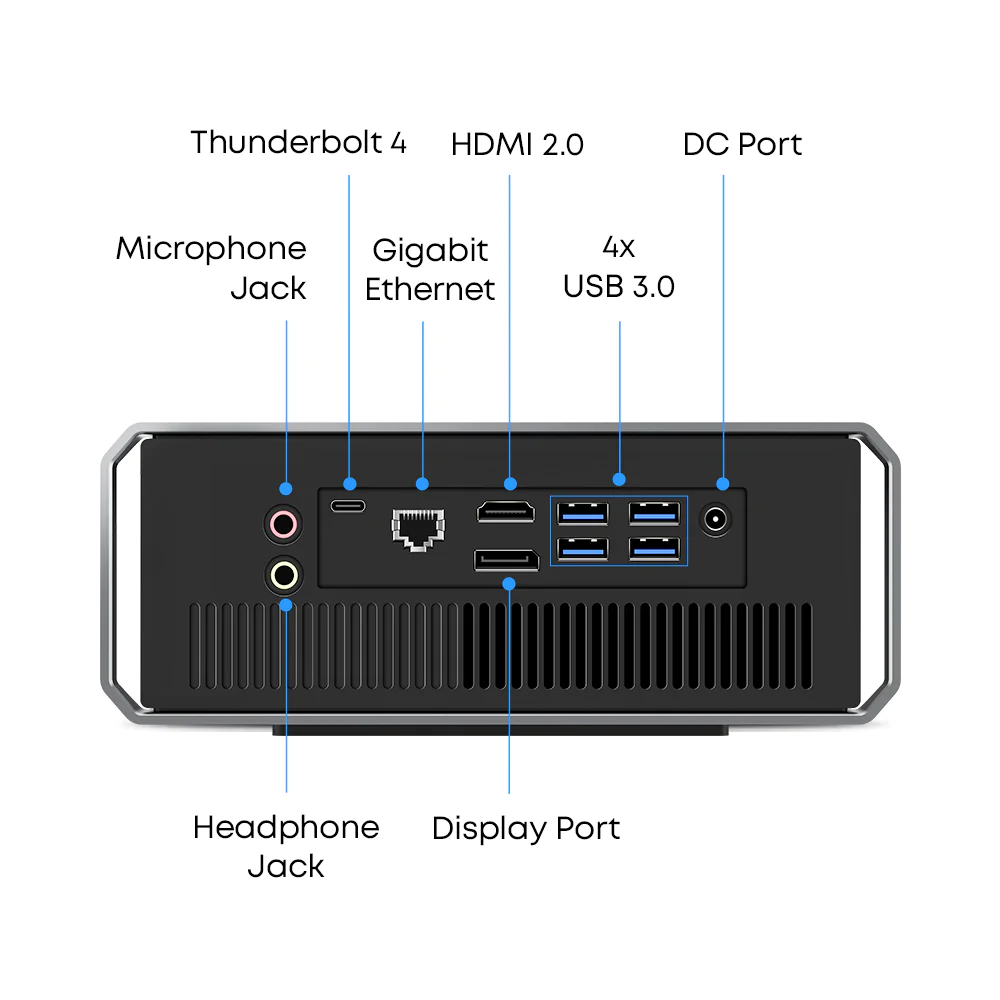

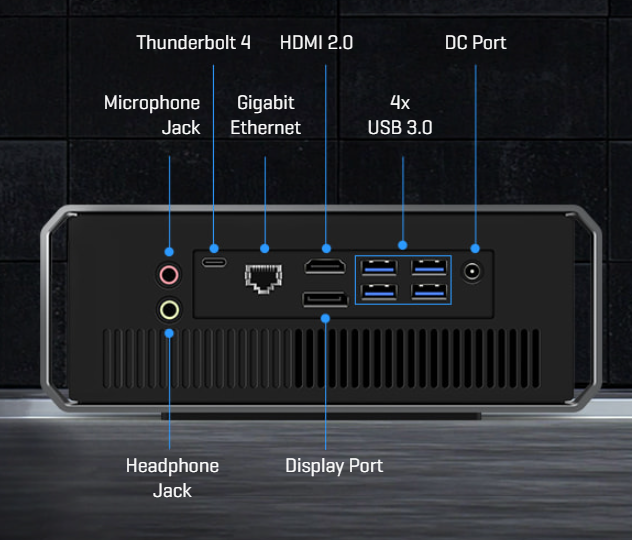

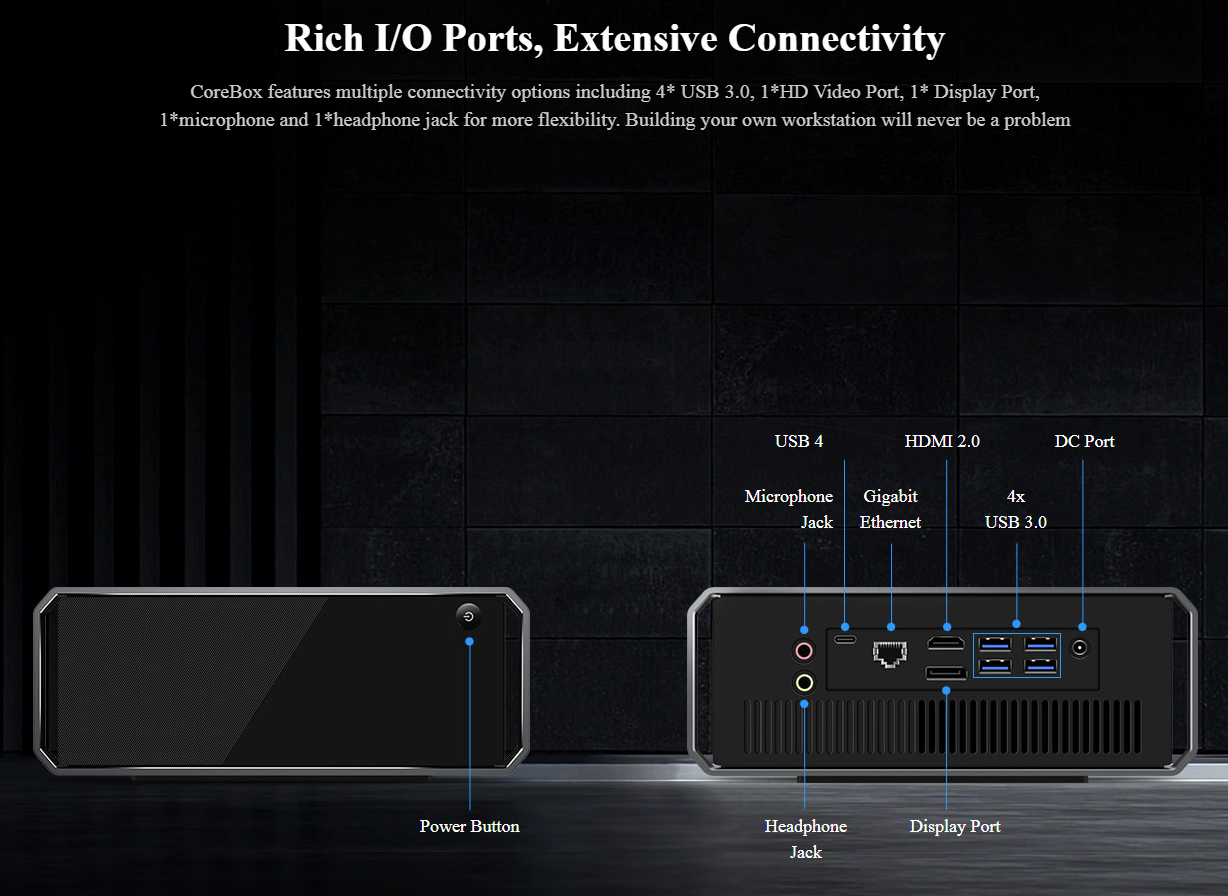

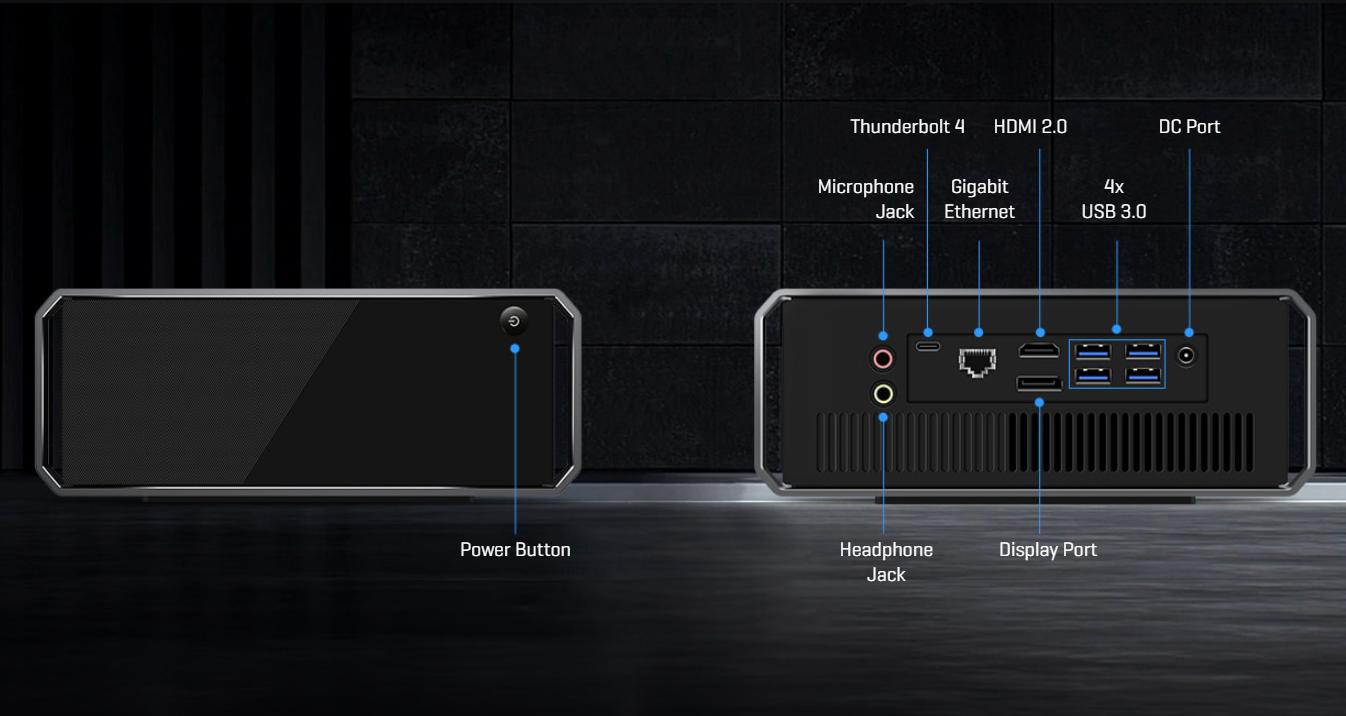

Rich I/O Ports

4x USB-A 3.0 · 1x USB4 · 1x HDMI 2.0 · 1x DisplayPort 1.4 · 1x RJ45 Gigabit Ethernet · 1x Microphone Jack · 1x Headphone Jack · DC Power Jack (19V)

CHUWI CoreBox 4th intel core i3 1215u mini pc

7.3Expert Score

12th Gen Intel® Core™ i3-1215U Mini PC. Triple 4K@60Hz display support via HDMI 2.0 + DisplayPort 1.4 + USB4. Wi-Fi 6 (Intel AX201). 16GB LPDDR5 (soldered). 512GB PCIe SSD. Hybrid Cooling System.

Processor

7.2

RAM

Hard Disk

7.5

Connectivity

7.5

PROS

Intel® Core™ i3-1215U 12th Gen (Alder Lake)|Triple 4K@60Hz Display (HDMI + DP + USB4)|Wi-Fi 6 (Intel AX201)|2.5" SATA HDD expansion slot|Hybrid Cooling System — very quiet (~35dB full load)|Compact design (2.7L volume)|90W power adapter included

Additional information

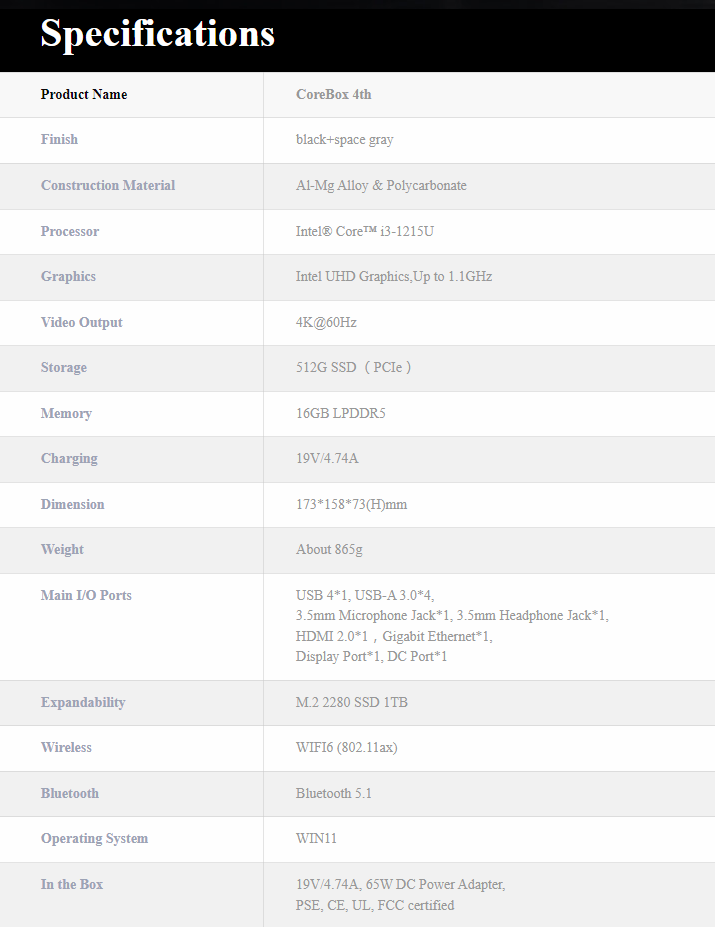

Specification: CHUWI CoreBox 4th Intel® Core™ i3-1215U

Processor

Processor Brand	Intel
CPU Model	Intel® Core™ i3-1215U – 12th Generation (Alder Lake)
CPU Speed	1.2 GHz (up to 4.4 GHz)
Processor Cache	10 MB (L2: 5 MB + L3: 10 MB)
Processor Cores / Threads	6 Cores / 8 Threads (2P-cores + 4E-cores)
Processor Nanometer	10 nm
Processor Launch Date	Q1 2022
TDP	15W (up to 35W)

Ports

HDMI	1x HDMI 2.0 4K@60Hz
DisplayPort	1x DisplayPort 1.4 4K@60Hz
USB 3.0 Ports	4x USB-A 3.0
USB 4.0 Ports	1x USB4
RJ45	1x Gigabit Ethernet (1000 Mbps)
Audio Output	1x 3.5mm Headphone Jack
Microphone Jack	1x 3.5mm Microphone Jack
CLR CMOS Button	No

Network

Bluetooth	5.1
Ethernet	1x Gigabit Ethernet (1000 Mbps)
Wi-Fi	Wi-Fi 6 (802.11ax) — Intel AX201

GPU

Graphics Coprocessor	Intel® UHD Graphics for 12th Gen Intel® Processors
Graphics Description	Triple 4K@60Hz display support: 1x HDMI 2.0 + 1x DisplayPort 1.4 + 1x USB4
Video Resolution	4k@60Hz
Graphics Core	64 EUs
Graphics Frequency	Max. 1.10 GHz
Video Output	1x HDMI 2.0 (4K@60Hz)\|1x DisplayPort 1.4 (4K@60Hz)\|1x USB4 (4K@60Hz)

Internal Ports

M.2	1x M.2 PCIe SSD slot (replaceable)
SATA	1x 2.5" SATA HDD/SSD Slot (SATA 3.0 6.0Gb/s)

Storage & RAM

Hard Disk Size	512 GB
Hard Drive Interface	M.2 PCIe
Hard Drive Upgrade Storage	Up to 2TB M.2 PCIe + 2.5" SATA HDD/SSD
RAM Size	16 GB
RAM Type	LPDDR5 4800MHz (soldered — non-upgradeable)
Supported RAM	16 GB (soldered — non-upgradeable)
RAM Interface	LPDDR5 4800MHz Dual Channel (soldered)

Power

Power Adapter	DC 19V / 4.74A (90W)

Others Specifications

Brand	Chuwi
Model	CoreBox 4th
Launch Date	Q4 2022
O.S.	Windows 11 Home (pre-installed)
Ventilation	Hybrid Cooling System: large fan + aluminum heatsink. ~20dB idle / ~35dB full load
Kensington lock	No
Product Dimensions	173 x 158 x 73 mm
Net Weight	865 g
Package	1x 90W DC Charger/Cable (19V/4.74A), 1x CoreBox 4th, 1x User Manual, 1x Warranty card
