ACEMAGIC Retro X5

The Mini PC That Time-Travelled from 1985 — With AMD Ryzen™ AI 9 HX 370 Inside

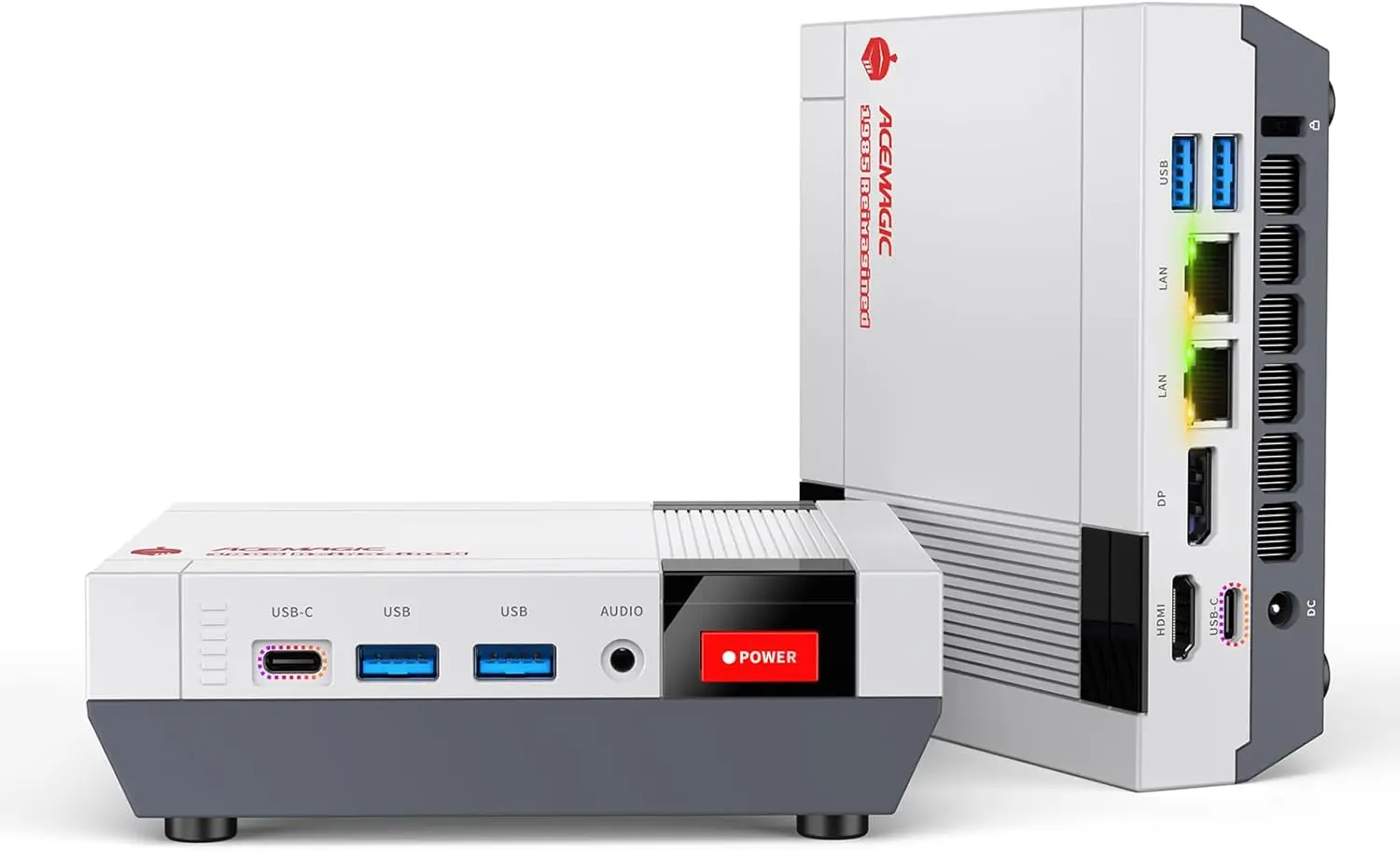

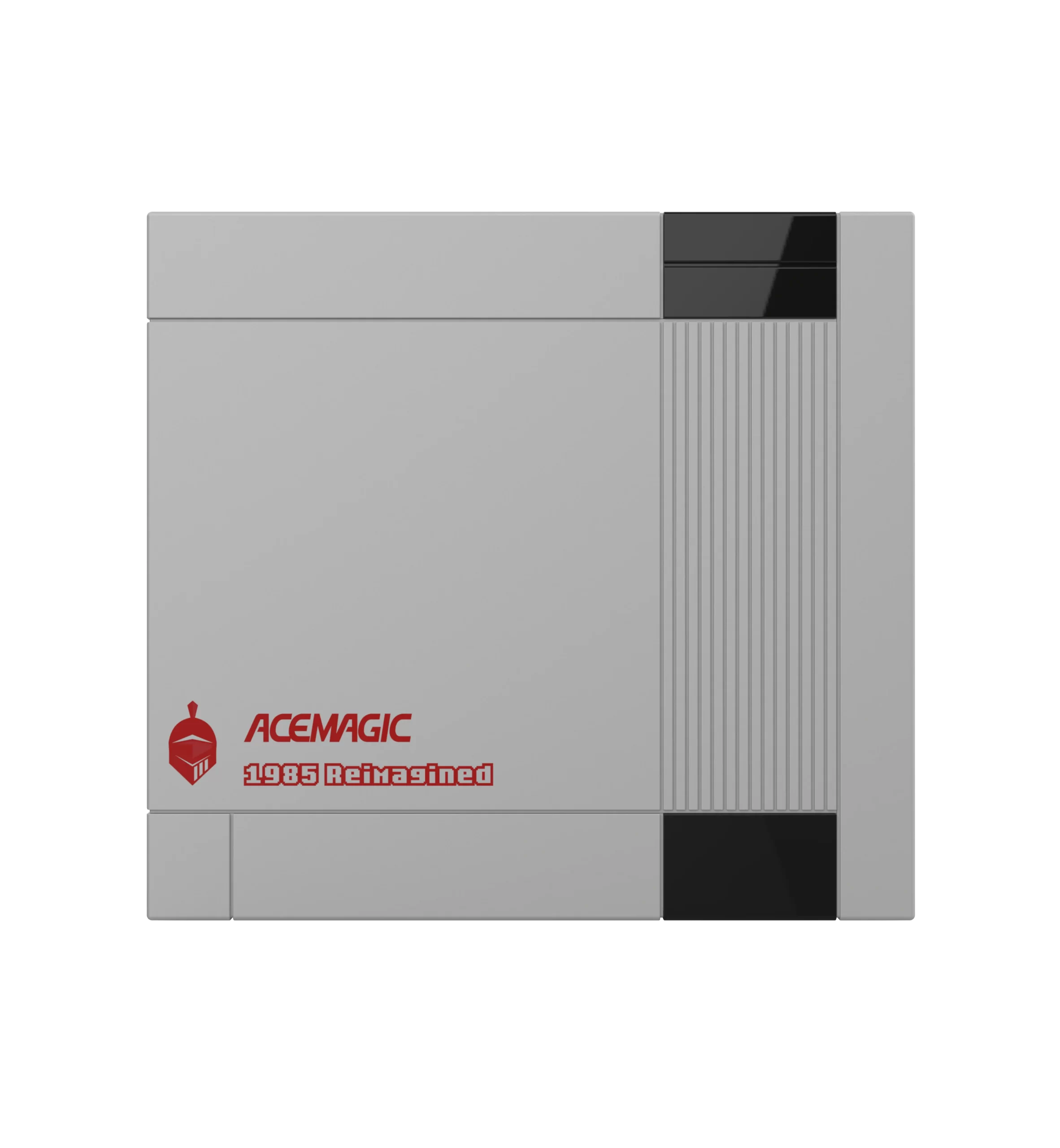

There are two types of mini PC. The first type tries to disappear — a small black or silver box that sits quietly behind a monitor, indistinguishable from every other compact desktop on the market. The second type makes a statement. The ACEMAGIC Retro X5 is emphatically the second type. It looks, at first glance, like a Nintendo Entertainment System pulled directly from 1985: a matte grey and dark grey rectangular chassis with black accent lines, ventilation grilles that echo the NES’s cartridge slot area, and a deliberate blockiness that makes every other mini PC on the market look anonymous by comparison. Then you look at the specification sheet, and the time-travel joke goes the other way — because inside this throwback shell is AMD’s flagship Ryzen AI 9 HX 370 Strix Point processor, Radeon 890M graphics with 16 RDNA 3.5 compute units, an XDNA 2 NPU delivering 50 TOPS of dedicated AI acceleration, up to 128 GB of DDR5 memory, dual M.2 PCIe 4.0 SSD slots, dual 2.5 Gigabit Ethernet, Wi-Fi 7, and DisplayPort 2.0 video output.

The contrast is the product. ACEMAGIC is not selling a novelty chassis wrapped around entry-level silicon — they are selling what may be the most personality-rich AI mini PC ever made, and backing it with hardware serious enough to earn that claim. Guru3D described it as a machine that “leans hard into nostalgia while hiding thoroughly modern hardware inside,” and concluded that “with the HX 370 onboard, the machine has enough genuine performance to be taken seriously.” The Gadgeteer called it “a retro mini PC with serious desktop-class power.” NotebookCheck noted with some delight that while the original NES ran at a mere 1.8 MHz, the Retro X5’s Ryzen AI 9 HX 370 boosts to 5,100 MHz across 12 cores and 24 threads. The gap between those two numbers — 1.8 MHz versus 5,100 MHz — is the entire story of fifty years of computing progress, contained in a box that makes you think of cartridge slots and CRT televisions.

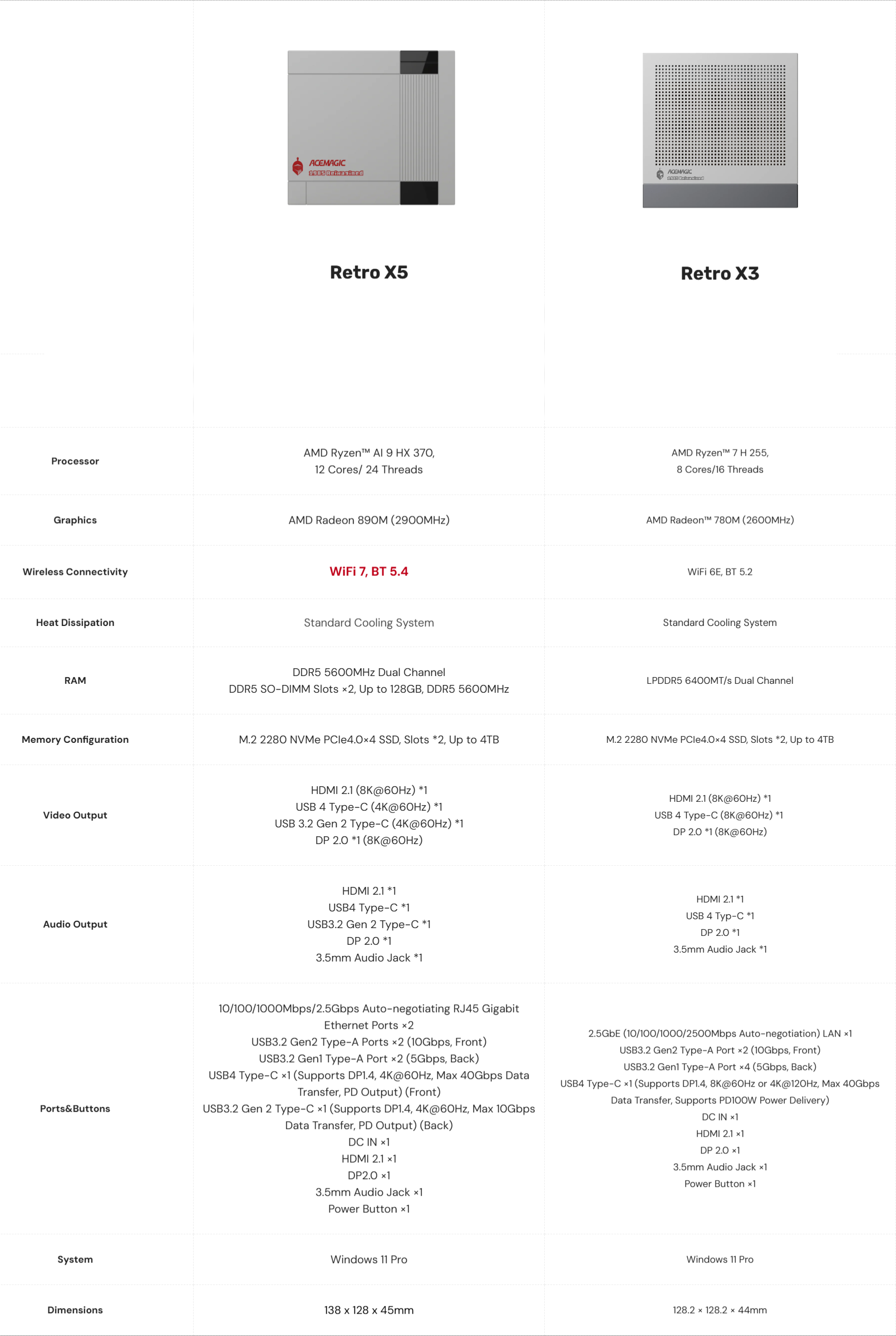

Specifications

Design Philosophy — NES Aesthetic, Modern Engineering

The Retro X5’s chassis design is not an accident or a gimmick — it is a considered product decision that reflects a specific understanding of who this machine is for. ACEMAGIC has identified a gap in the market: people who grew up with late-1980s and early-1990s home consoles, who now have disposable income, who want a capable compact desktop for work and productivity, and who also want their desk setup to make visitors stop and ask “what is that?” The NES-inspired grey-and-black dual-tone finish, the rectangular form factor, the functional ventilation grilles that deliberately echo the cartridge loading slot — none of it is incidental. Every visual element has been chosen to evoke a specific era of gaming culture while remaining practical and contemporary.

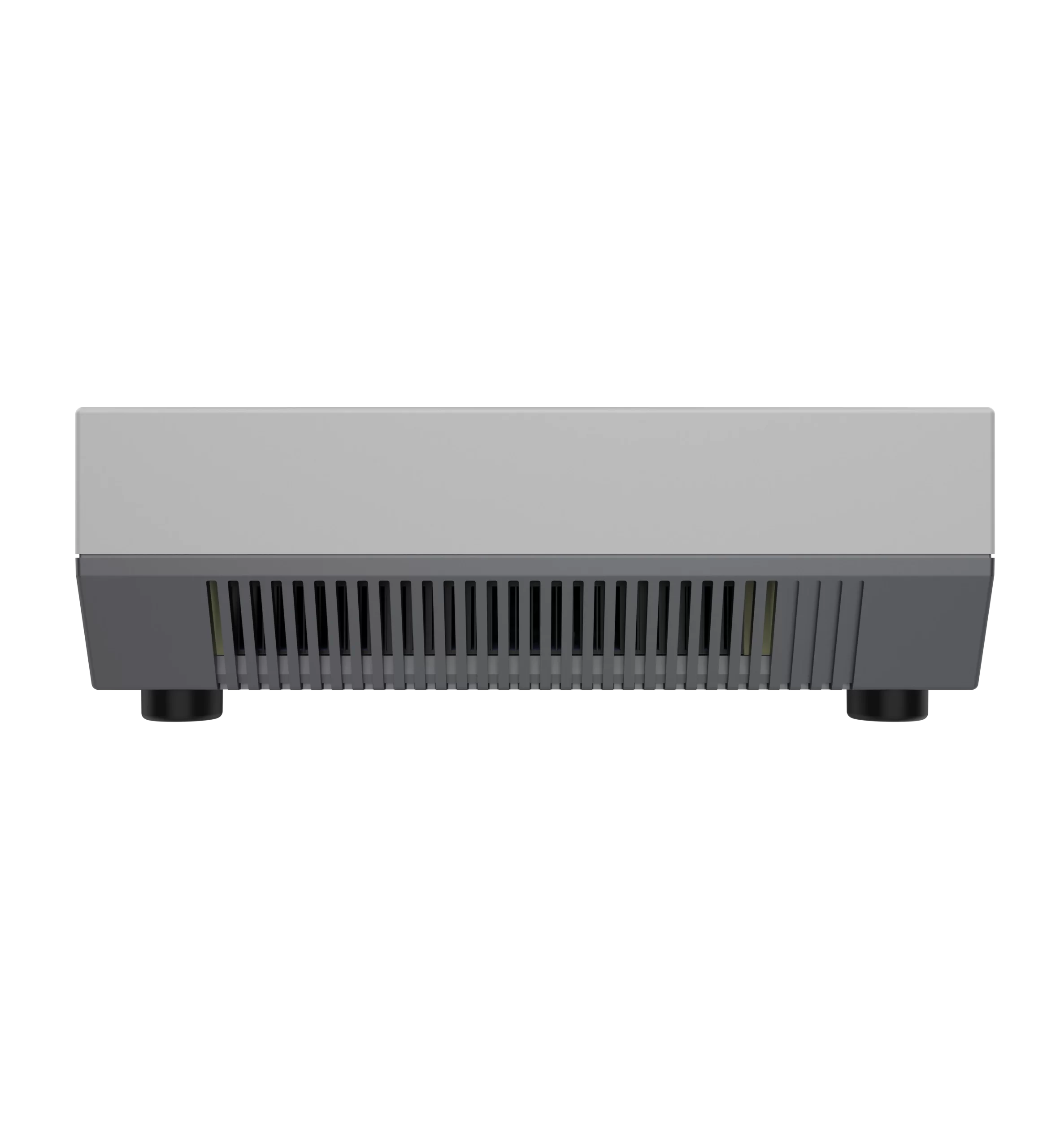

What makes the design coherent rather than merely nostalgic is the restraint ACEMAGIC has shown. There is no RGB lighting competing with the retro aesthetic. There is no aggressive angular gamer branding stamped across the top panel. The shell feels, as The Gadgeteer’s reviewer put it, “deliberate rather than cheap, and the color blocking gives the whole unit a toy-like quality that somehow works in a workspace setting.” The ventilation grilles on the sides are not decorative — they are part of the Fresh Air Cooling System 3.0 airflow path, moving heat efficiently through the chassis while looking like something the original NES hardware team might have drawn. This is a machine you place on your desk where it can be seen, not hidden behind a monitor stand.

The tool-free removable top cover is another thoughtful design element. Lift the panel off and the two SO-DIMM memory slots and two M.2 2280 SSD slots are immediately accessible without screwdrivers, bottom-panel removal, or any of the disassembly complexity that plagues competing mini PCs. ACEMAGIC is explicitly targeting users who want to start with 32 GB and upgrade to 64, 96, or 128 GB later — the tool-free access makes this a genuinely frictionless process. For the DIY community, a barebone version ships without RAM, SSD, or operating system, allowing builders to supply their own components — a configuration that signals, as one reviewer noted, “ACEMAGIC understands its audience isn’t just casual buyers looking for a cute desk ornament.”

AMD Ryzen™ AI 9 HX 370 — 12 Zen 5 Cores, the Full Strix Point Platform

The Ryzen AI 9 HX 370 is AMD’s flagship Strix Point processor, using a hybrid Zen 5 / Zen 5c architecture across 12 cores and 24 threads manufactured on TSMC’s 4 nm process. Four full Zen 5 performance cores handle demanding single-threaded and lightly-threaded tasks, boosting to 5.1 GHz with full IPC advantage over previous Zen generations. Eight Zen 5c efficiency cores handle background workloads and parallel tasks, keeping the system responsive during multitasking without stealing clock budget from the performance cores. The chip includes 24 MB of L3 cache and operates at 65W TDP in the Retro X5 — a meaningfully higher power limit than the laptop-tuned configurations of the same chip, which typically run at 28W to 54W, allowing the mini PC form factor to sustain higher clock speeds for longer under load.

In the context of retro gaming and emulation — which is explicitly part of the Retro X5’s marketing pitch — the HX 370 is, as ACEMAGIC’s own video puts it, “absolute overkill for retro gaming.” PlayStation 2 games at 4K upscaling, GameCube titles, Nintendo 64, Super Nintendo, PlayStation 1, Sega Dreamcast — the HX 370 handles all of these with substantial headroom to spare. PlayStation 3 emulation via RPCS3, which is one of the most CPU-demanding emulators available, runs successfully at native and enhanced resolutions. Original Xbox titles via Xemu perform well. The Radeon 890M’s RDNA 3.5 architecture accelerates the GPU-intensive portions of newer emulators, and the combination of strong single-core performance and capable iGPU means the Retro X5 can run effectively the entire history of game console emulation without breaking a sweat.

• 12 cores / 24 threads (4× Zen 5 P-cores + 8× Zen 5c E-cores)
• Base 2.0 GHz — Boost up to 5.1 GHz
• L2 Cache: 12 MB | L3 Cache: 24 MB
• 4 nm TSMC process (Strix Point — Ryzen AI 300 series)
• TDP: 65W (mini PC optimised — higher than laptop-tuned configurations)
• ~30% better multi-core performance than Intel Core i9-13900HK

AMD Radeon™ 890M — 16 RDNA 3.5 CUs, Entry-Level Discrete GPU Performance

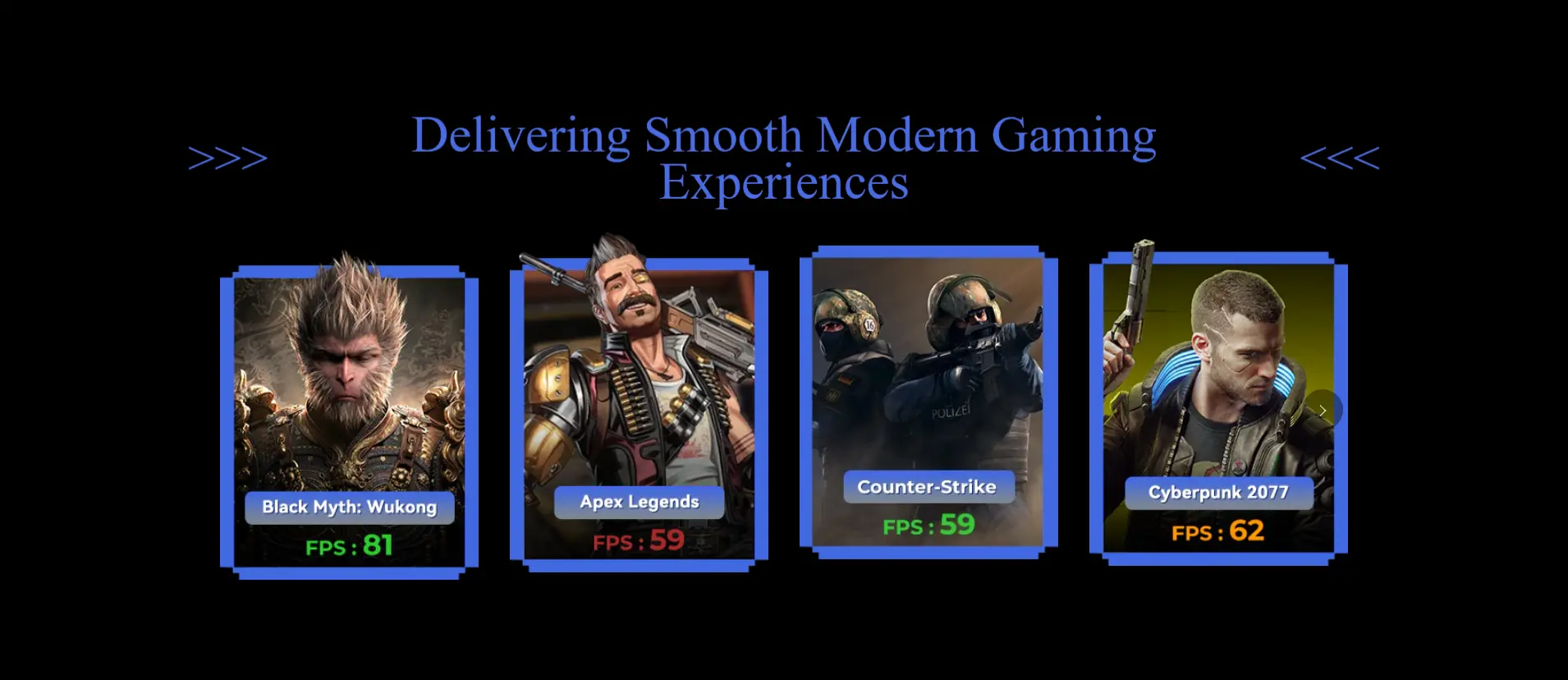

The integrated Radeon 890M GPU brings 16 RDNA 3.5 compute units running at 2.9 GHz — the same graphics engine found in competing HX 370-based systems like the GEEKOM A9 Max and ACEMAGIC F5A, and the most capable integrated GPU available in a standard-TDP APU. Gizmochina’s review assessed its performance as “similar to entry-level discrete GPUs like the GeForce RTX 2050,” which is a meaningful benchmark: it means the Retro X5 can run a broad catalogue of modern PC gaming titles at 1080p with medium settings and playable frame rates, handle hardware-accelerated video encode and decode in DaVinci Resolve and Premiere Pro, and drive demanding AI image generation workloads through Stable Diffusion locally.

For the retro gaming use case specifically, the 890M is particularly well-suited. Emulators benefit from GPU acceleration for upscaling, shader compilation, and post-processing filters — the 890M handles all of these with headroom. PS2 games upscaled to 4K through PCSX2 run at full speed. GameCube and Wii titles in Dolphin run at 1080p and beyond without frame drops. Switch titles via Ryujinx or Yuzu perform well at native resolution. The RDNA 3.5 architecture also supports AMD FidelityFX Super Resolution (FSR), which modern PC game ports and emulator front ends increasingly support, providing additional frame rate headroom in demanding scenarios. Through BIOS configuration, users can also allocate a portion of system DDR5 RAM as dedicated VRAM, increasing the memory pool available to the GPU beyond the iGPU’s default allocation for more memory-intensive tasks.

XDNA 2 NPU — 50 TOPS, Copilot+ PC, Local AI and RetroPlay AI Features

The XDNA 2 neural processing unit embedded in the HX 370 delivers 50 peak TOPS of dedicated AI compute, operating independently of both the CPU and GPU. Combined with the GPU’s and CPU’s AI acceleration contributions, total system AI throughput reaches 80 TOPS — double the 40 TOPS threshold required for Microsoft Copilot+ PC certification. All Windows 11 Copilot+ features are active from first boot: Recall, live caption translation, AI image creation, and AI-enhanced studio audio all run locally on the NPU without cloud dependency or subscription requirements.

ACEMAGIC is also using the NPU to power future features of the RetroPlay Box software platform. NotebookCheck specifically highlighted the AI-translation feature as an intriguing possibility — using the NPU to translate untranslated Japanese-language games in real time, providing English subtitles or dubbed audio without requiring fan translation patches. AI gameplay assistance and recommendation features are also planned. These use cases are genuinely novel in the mini PC space and represent a meaningful application of the NPU beyond the standard productivity AI features that every Copilot+ PC supports. Local AI model inference through LM Studio, Ollama, and similar platforms is also fully supported — ACEMAGIC’s own tests demonstrate running DeepSeek R1 70B and LLaMA 3.3 70B locally with 128 GB of installed RAM.

RetroPlay Box — Integrated Emulation Platform

The Retro X5 ships with ACEMAGIC’s RetroPlay Box software pre-installed on Windows 11 Pro — a dedicated emulation front end designed to provide an all-in-one retro gaming environment that requires minimal configuration from the user. Pre-configured emulators for the major platforms are included, and users need only supply ROM files to begin playing. The interface is designed around the living-room or TV setup use case, with gamepad-first navigation and a library view that organises games by console.

It is important to set accurate expectations: at the time of the Retro X5’s launch, RetroPlay Box is described across multiple reviews as still in early development, and some promised features — including the AI recommendation engine and AI translation features — are not yet available in the shipping version. ACEMAGIC has committed to continued development and regular updates, but users who want a fully polished, feature-complete emulation front end from day one may prefer to configure their own preferred solution (RetroArch, Launchbox, EmulationStation DE) on the Windows 11 Pro base installation. The hardware is fully capable of running all of these alternatives without any limitation.

Up to 128 GB DDR5 SO-DIMM — Tool-Free Upgrades

Two standard DDR5-5600 SO-DIMM slots sit under the tool-free removable top cover, supporting individual modules up to 64 GB for a maximum total of 128 GB. The base configuration ships with 32 GB in a dual-channel 2×16 GB arrangement — immediately sufficient for most productivity, gaming, and moderate AI inference workloads. Users who want to run larger local language models (DeepSeek R1 70B, LLaMA 3 70B) will benefit significantly from upgrading to 64 GB or 128 GB, as model size directly determines which language models can be loaded fully into memory without quantisation compromises. Unlike soldered-memory competing products, the SO-DIMM format makes this upgrade a thirty-second process: lift the top cover, slot in new modules, replace the cover. No screwdrivers, no disassembly, no service required.

Dual M.2 PCIe 4.0 — Up to 4 TB of NVMe Storage

Two M.2 2280 PCIe 4.0 ×4 slots provide fast NVMe storage with sequential read speeds exceeding 6,000 MB/s. The primary slot ships with a 1 TB SSD; the secondary slot is empty and ready for immediate expansion. Both slots are accessible under the same tool-free top cover as the memory — one panel removal gives access to all upgradeable components simultaneously. Maximum single-drive capacity of 2 TB per slot gives a total ceiling of 4 TB across both slots, which is substantial storage for a game library (emulation ROMs are typically small), creative project files, or a generously provisioned development environment. ACEMAGIC sources SSDs from Samsung, Kingston, Crucial, Adata, and Phison depending on availability, with all suppliers meeting the same technical specifications.

Fresh Air Cooling System 3.0 — Five Copper Pipes, Triple Turbo Fans

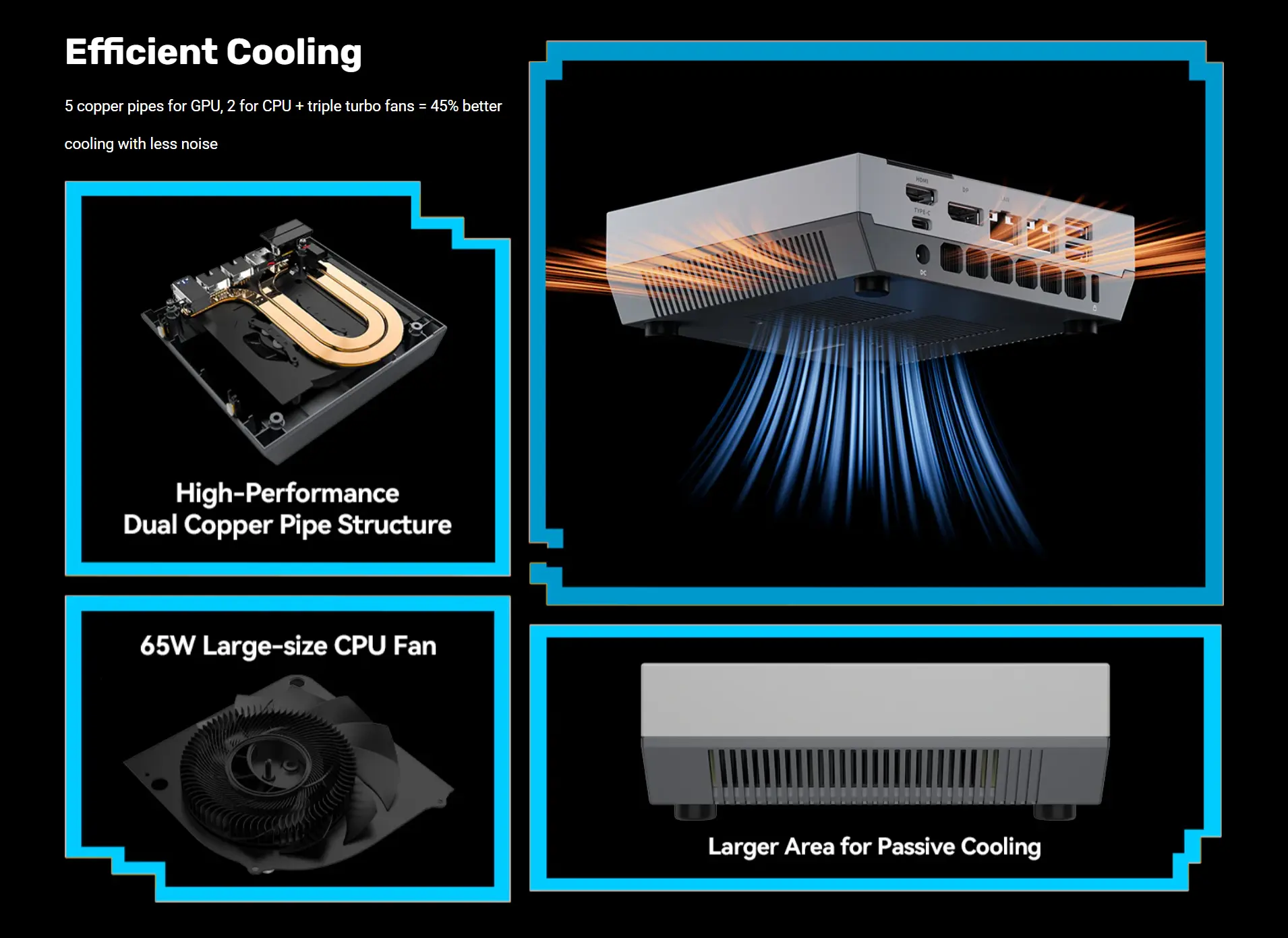

Cooling the HX 370’s 65W TDP inside the Retro X5’s compact chassis is handled by ACEMAGIC’s Fresh Air Cooling System 3.0. The thermal solution uses five copper heat pipes dedicated to the GPU and two for the CPU, transferring heat to a copper fin stack exhausted by triple turbo fans. ACEMAGIC rates this cooling configuration as delivering 45% better thermal performance with less noise compared to the previous generation. The ventilation grilles on the sides of the chassis — which contribute to the NES aesthetic — are functional intake and exhaust paths for the cooling system, not decorative covers. PCVenus and minipc-review.com both noted that sustained boost behaviour and thermal acoustics under prolonged load are the key unknowns for this product at launch, as the HX 370 is ambitious silicon for a compact chassis at any TDP. Initial user reports are positive, but sustained long-duration benchmark data is still accumulating.

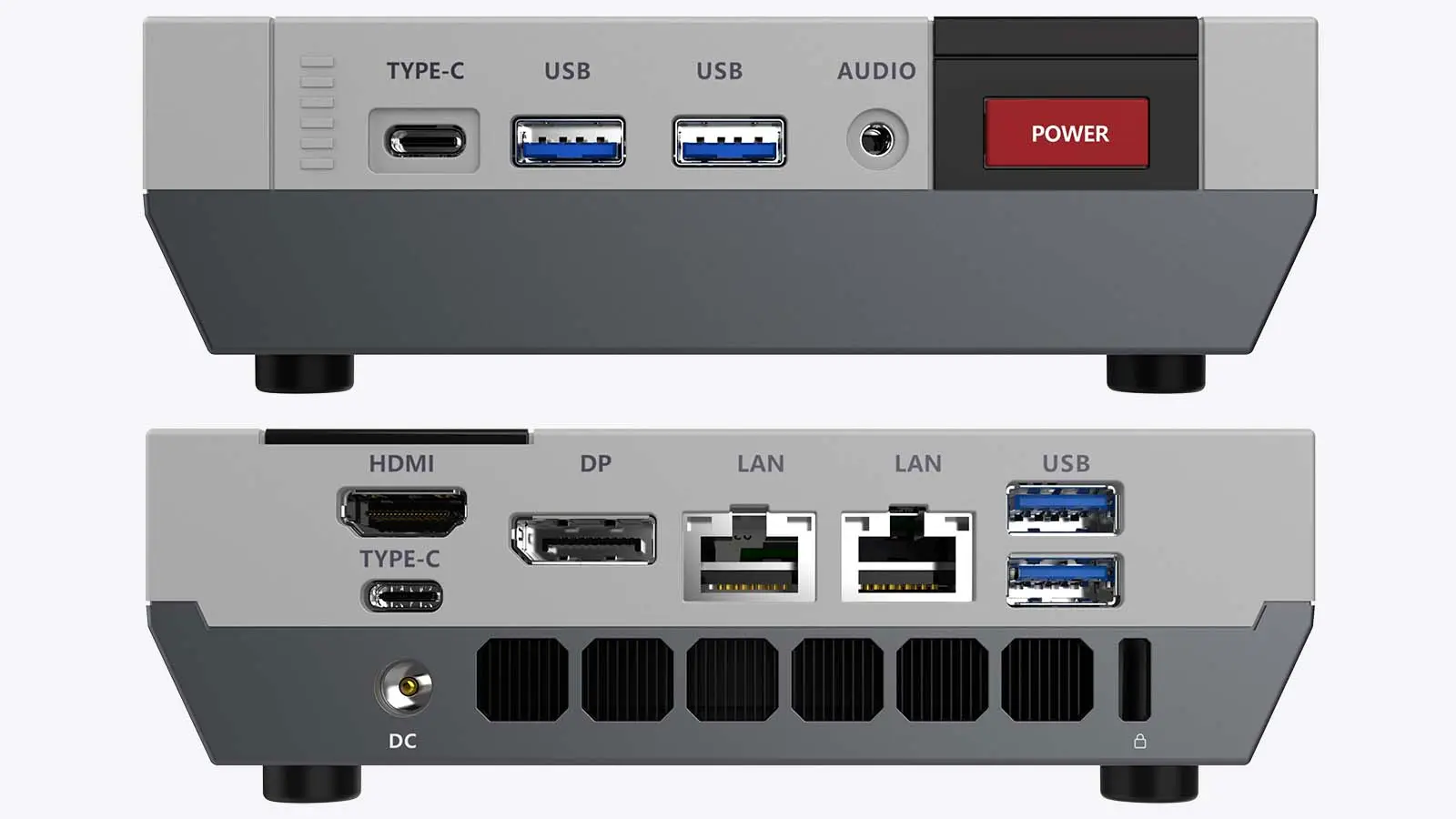

Quad 8K Display + Dual 2.5 GbE + Wi-Fi 7 + USB4 100W PD

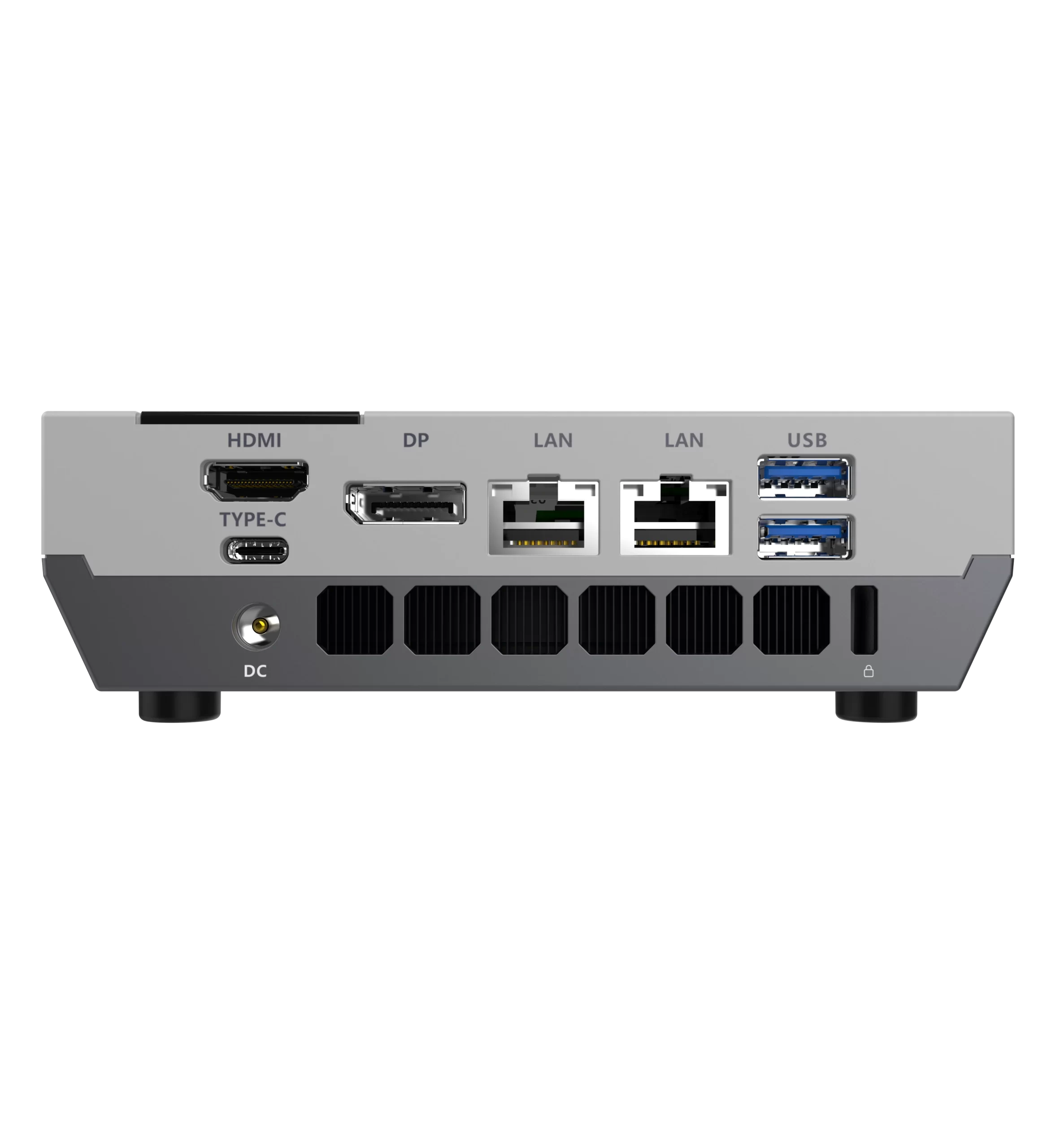

The connectivity specification of the Retro X5 matches or exceeds competing HX 370 mini PCs despite the unusual chassis design. HDMI 2.1 (8K@60Hz), DisplayPort 2.0 (8K@60Hz), and two USB4 ports with DisplayPort Alt Mode support quad simultaneous 8K displays — matching the output configuration of the ACEMAGIC F5A and the GEEKOM A9 Max. Two independent 2.5 Gigabit Ethernet ports enable dual wired network connections — a specification absent from the Beelink SER9 Pro’s single 2.5 GbE. Wi-Fi 7 (802.11be) with Bluetooth 5.4 provides the latest-generation wireless connectivity across all three bands. The front USB4 port supports 100W Power Delivery input, meaning the Retro X5 can be powered from a 100W USB-C power bank or hub when mains power is unavailable — an unusual capability for a desktop mini PC at this performance tier. eGPU support via USB4 is also confirmed, allowing connection of external GPU enclosures for discrete graphics performance when the 890M’s iGPU output is insufficient for demanding tasks.

TPM 2.0 + Windows 11 Pro + 2-Year Warranty

A hardware TPM 2.0 security module is integrated into the Retro X5’s mainboard, providing hardware-based encryption for stored data and credentials — meaningful protection in shared, public, or enterprise deployment scenarios. Windows 11 Pro is pre-installed and activated on all pre-configured models, with all Copilot+ AI features enabled from first boot. ACEMAGIC backs the Retro X5 with a two-year warranty covering hardware defects and manufacturing faults, and a 30-day money-back guarantee for purchases made through official channels. A barebone option without RAM, SSD, or OS is available for builders who prefer to supply their own components or run an alternative operating system. ACEMAGIC’s international customer support team is active across major review platforms and responds to queries typically within 24–48 hours.

Who is the Retro X5 For?

The Retro X5 occupies a genuinely unique position in the mini PC market. It is for buyers who want all of the following simultaneously: a capable, modern AI mini PC that can handle productivity, content creation, light gaming, and local AI inference at the HX 370 level; a retro gaming emulation platform that can run effectively the entire history of console gaming in a single device; and a desk object that generates conversation, expresses personality, and refuses to be invisible. If you want a machine that disappears into the desk, buy something else. If you want one of the most distinctive and characterful mini PCs ever made — and one that backs its personality with genuinely serious hardware — the Retro X5 is, as minipc-review.com concluded, “a serious contender.”

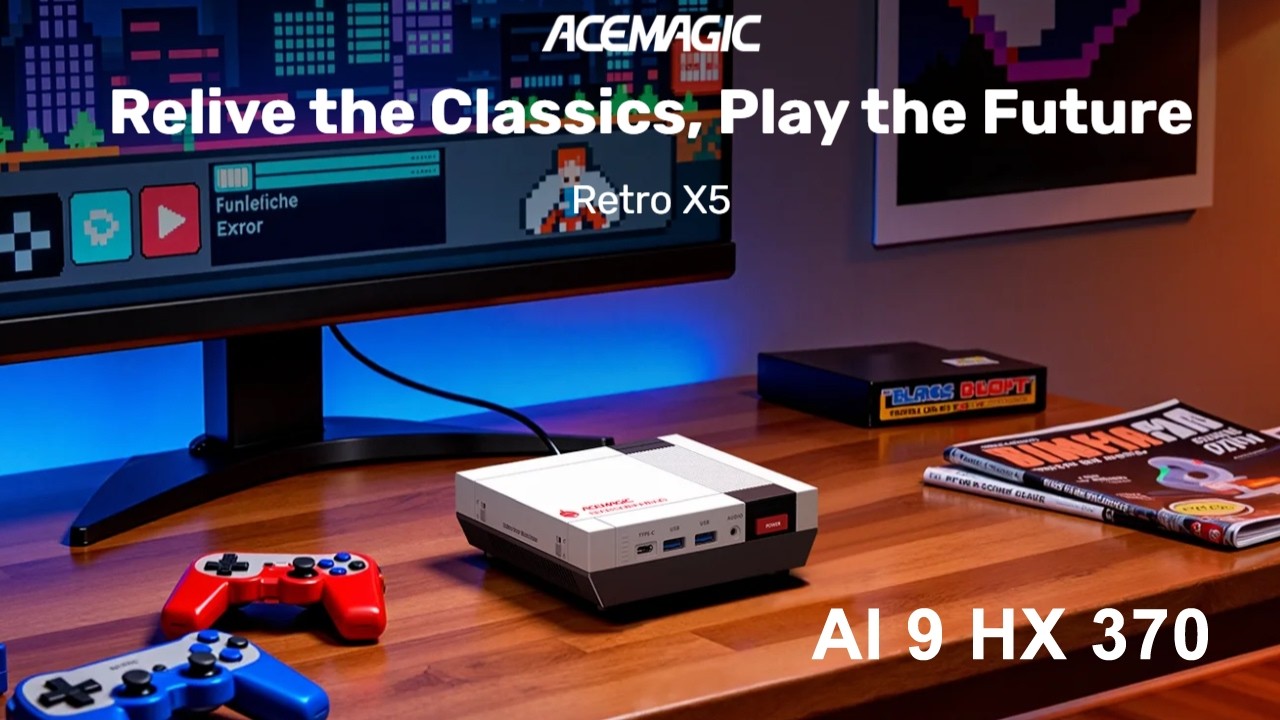

Video:
